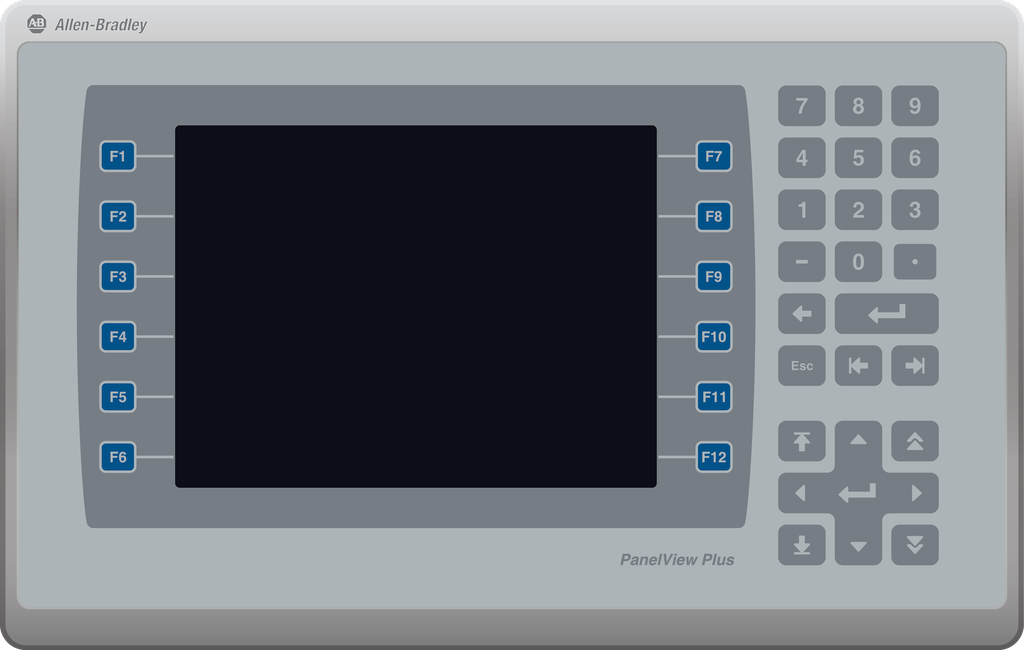

A-B 2711P-B7C22D9P PanelView Plus 7
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer AB-EOI
Mfg Catalog # 2711P-B7C22D9P
North Coast Part # 1167740


  • Monitors applications from a remote location with VNC connectivity
  • Includes email and texting notification capabilities
  • UL IP69 rated and tested to IP69K according to ISO 20653
  • Features IP66 protection for a cabinet-free HMI solution
  • Features stainless steel 304 bezel
  • Uses Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
  • Uses an SD card to copy and restore the operator interface quickly
  • Includes replaceable blue food-grade silicone gasket
  • Includes option to individually customize buttons and switches
  • Offers brandless display sizes in 9 in. and 12 in.
  • Features NSF certification - See the story
  • Offers conformal coating
  • Offers 12 in. display size in a fully enclosed panel
  • Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
  • Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface


Panelview Plus 7 Data

  • Input Type: Keypad/Touch
  • Monitor Size: 7 inches
  • Display Type: Color (TFT)
  • Communications: Embedded Switch/DLR
  • Input Voltage: 24V DC
  • Brandless?: No


UPC 88563084450
GTiN 00885630844503
Width 11.22 in
Type Graphic, Two Ethernet Port Supporting DLR
Height 7.05 in
Input Voltage 24 V
Family Brand Name Allen Bradley
Power Consumption 50 W
Environmental Conditions 0 to 55 C
Sub Brand PanelView Plus 7
Temperature Rating 0 - 55 C
Power Rating 50 W
Blade Dimensions 11.22 in W x 7.05 in H
Display Type Color (TFT)
