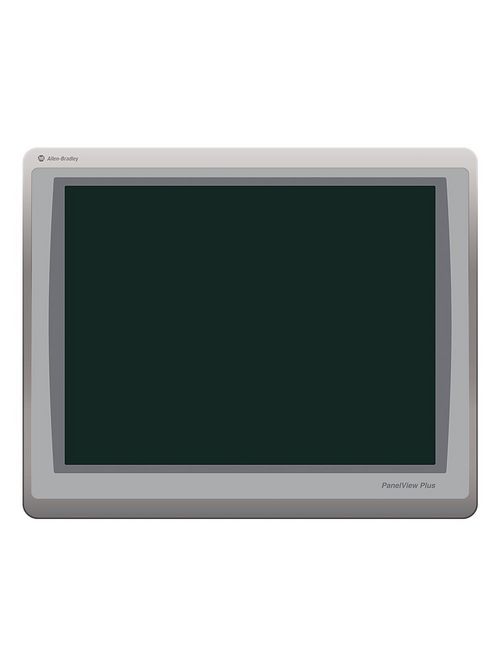

A-B 2711P-T15C22D9P PanelView Plus
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer AB-EOI
Mfg Catalog # 2711P-T15C22D9P
North Coast Part # 1336893


  • Uses Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
  • Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
  • UL IP69 rated and tested to IP69K according to ISO 20653
  • Features NSF certification - See the story
  • Includes replaceable blue food-grade silicone gasket
  • Includes option to individually customize buttons and switches
  • Includes email and texting notification capabilities
  • Offers brandless display sizes in 9 in. and 12 in.
  • Features stainless steel 304 bezel
  • Features IP66 protection for a cabinet-free HMI solution
  • Uses an SD card to copy and restore the operator interface quickly
  • Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface
  • Offers conformal coating
  • Monitors applications from a remote location with VNC connectivity
  • Offers 12 in. display size in a fully enclosed panel


Panelview Plus 7 Data

  • Input Type: Touch Screen
  • Monitor Size: 15 inches
  • Display Type: Color (TFT)
  • Communications: Embedded Switch/DLR
  • Input Voltage: 24V DC
  • Brandless?: No
  • Conformal coated ?: No


UPC 88563084471
Item Long Description PanelView Plus 7 Graphic Terminal
GTiN 00885630844718
Type Graphic, Wall/Direct Mount
Applications For Safety Functions, EtherNet/IP, AS-Interface Safety at Work, Other Bus Systems, SafetyBUS p
Input Voltage 24 V
Temperature Rating 0 - 55 C
Family Brand Name Allen Bradley
Blade Dimensions 297 mm W x 69.6 mm D x 252 mm H
Sub Brand PanelView Plus 7
Width 15.00 in
Voltage 18-30 VDC
Height 12.52 in
Display Type Color (TFT)
