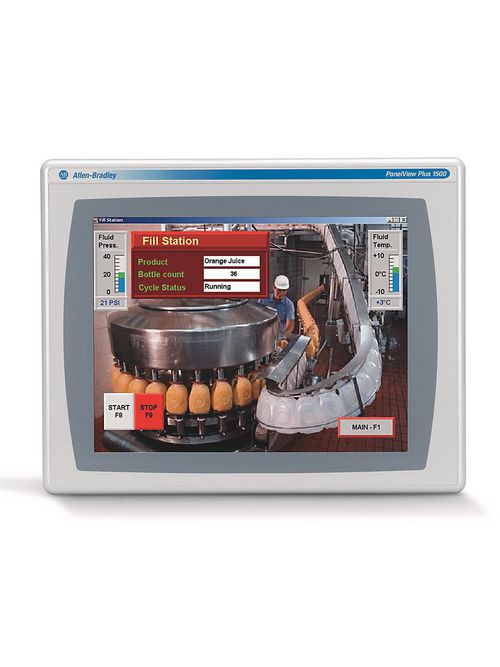

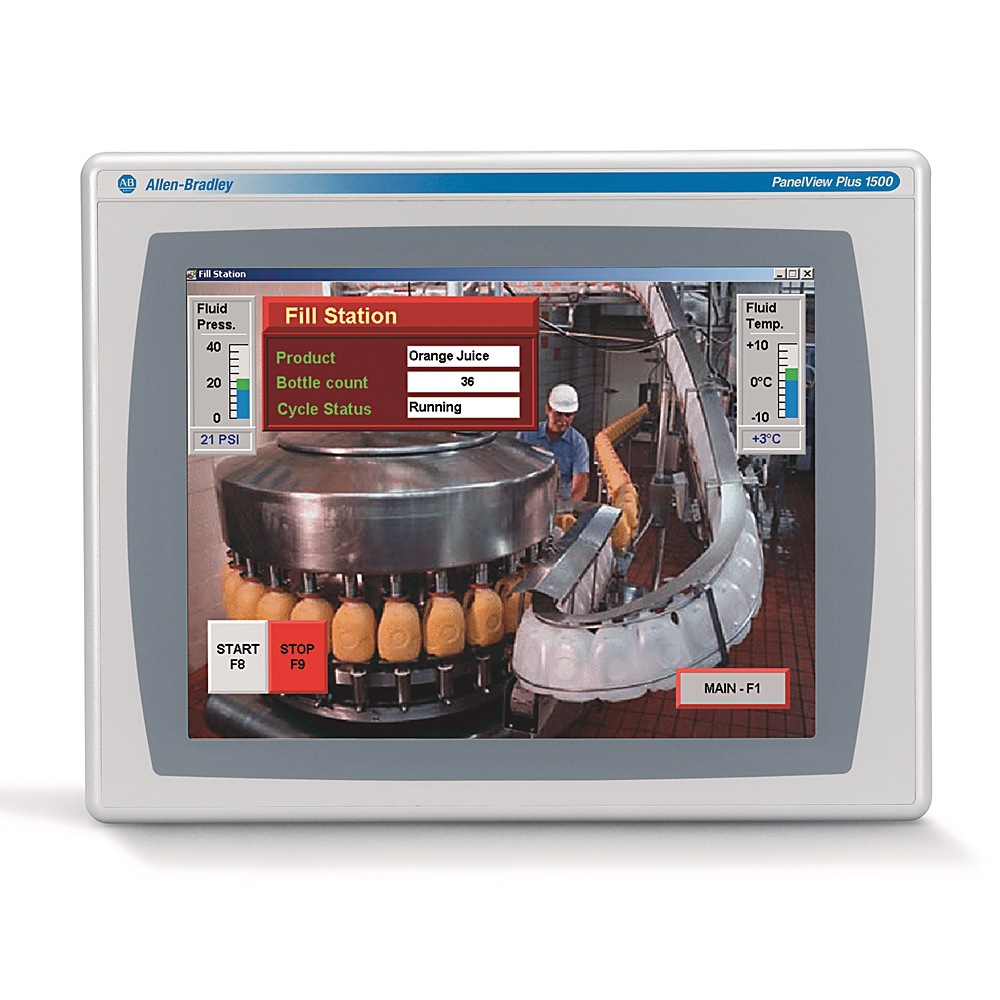

Allen-Bradley 2711P-T15C4A8 Panelview Plus Terminal

Specifications

Panelview Plus 6 Data

• Product Selection: PanelView Plus 6
• Monitor Size: 15-inch TFT Display
• DisplayType: Color (TFT)
• Input Type: Touch Screen
• Communication: Standard Communication - Ethernet & RS-232
• Power: AC Input
• Flash/RAM or Operating System: Windows CE 6.0

• Sub Brand: PanelView Plus 6
• Model: PVP6 Standard Edition

Accessories

• Network Media: Male RJ45 to RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m

Features

• Supports remote connectivity (VNC and FTP)
• Integrates with third-party software such as Microsoft® Internet Explorer® and Microsoft Office Viewers
• Provides significant improvements over the PanelView™ Plus 400 graphic terminals
• Offers backup restore functionality
• Supports ActiveX® Controls
• Provides remote recipe and data management through .CSV files
• Supports operator input via keypad (22 function keys), via touch screen or via keypad and touch screen
• Includes a 15 in. flat-panel color display with 1024 x 768 resolution (minimum) and 18-bit graphics
• Includes a 12.1 in. flat-panel color display with 800 x 600 resolution (minimum) and 18-bit graphics
• Supports DataStore Plus logging and trending, which eliminates the 300,000 data point limit
• Includes built-in PDF viewer for context-sensitive operator support
• Uses vector-based graphics from Symbol Factory

Accessories

• 1585J-M8TBJM-1M9
