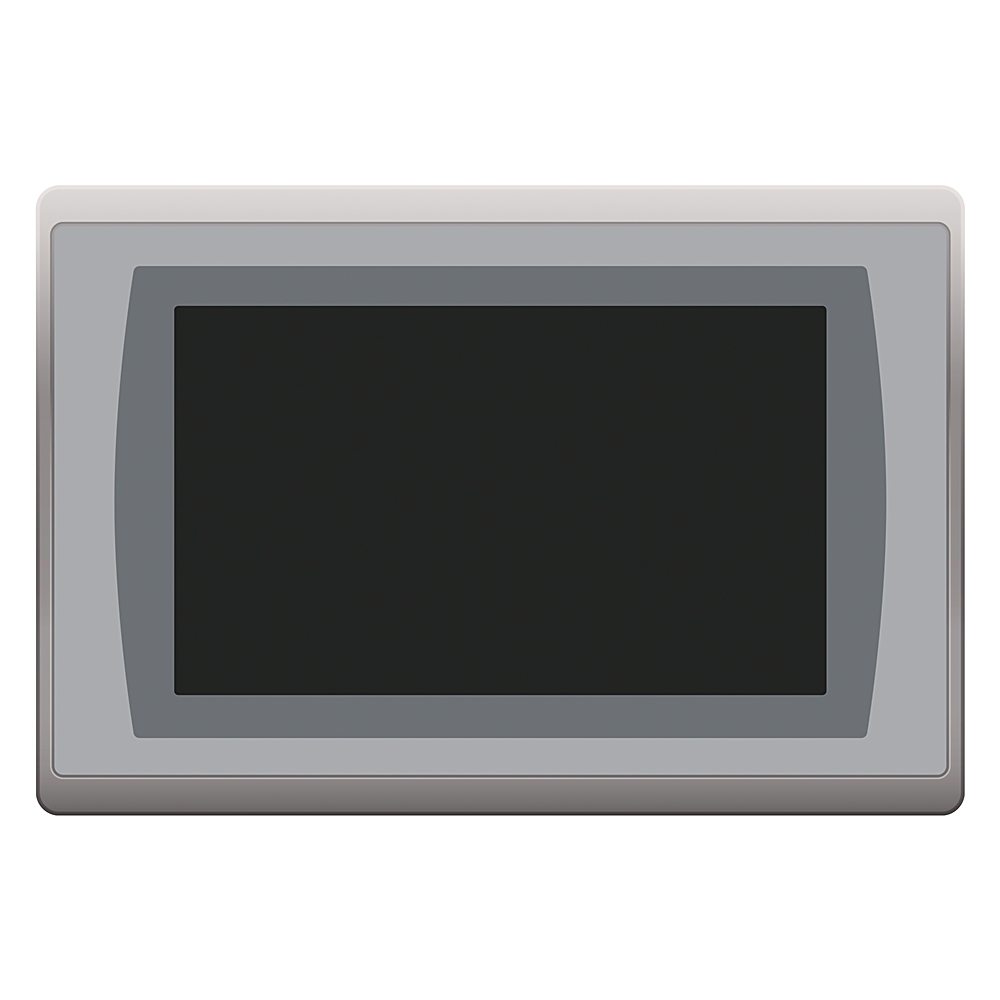

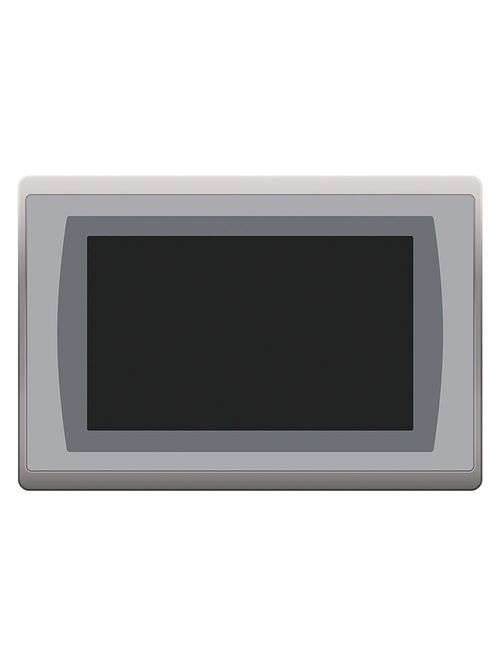

Allen-Bradley 2711P-T9W21D8S-B PanelView Plus
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 2711P-T9W21D8S-B
North Coast Part # 1095293


Panelview Plus 7 Data

  • Input Type: Touch Screen
  • Monitor Size: 9 inches
  • Display Type: Wide aspect ratio Color
  • Communications: Single Ethernet
  • Input Voltage: 24V DC
  • Brandless?: Yes


  • Features options to increase flexibility, including orientation mount options from either a swing arm, pedestal, or fixed surface
  • Offers conformal coating
  • Uses Windows CE 6.0 standard features and color TFT LCD, 18-bit color graphics
  • Includes 512 MB RAM and 512 MB nonvolatile memory (approximately 80 MB free user memory)
  • Features IP66 protection for a cabinet-free HMI solution
  • Uses an SD card to copy and restore the operator interface quickly
  • UL IP69 rated and tested to IP69K according to ISO 20653
  • Includes email and texting notification capabilities
  • Offers brandless display sizes in 9 in. and 12 in.
  • Features stainless steel 304 bezel
  • Offers 12 in. display size in a fully enclosed panel
  • Includes option to individually customize buttons and switches
  • Monitors applications from a remote location with VNC connectivity
  • Features NSF certification - See the story
  • Includes replaceable blue food-grade silicone gasket


UPC 88563092063
GTiN 00885630920634
Width 11.02 in
Type Single Ethernet, Brandless, Widescreen
Height 7.48 in
Input Voltage 24 V
Family Brand Name Allen Bradley
Power Consumption 50 W
Environmental Conditions 0 to 55 C
Sub Brand PanelView Plus 7
Color Two-Tone Gray
Temperature Rating 0 - 55 C
Power Rating 50 W
Blade Dimensions 11.02 in W x 7.48 in H
