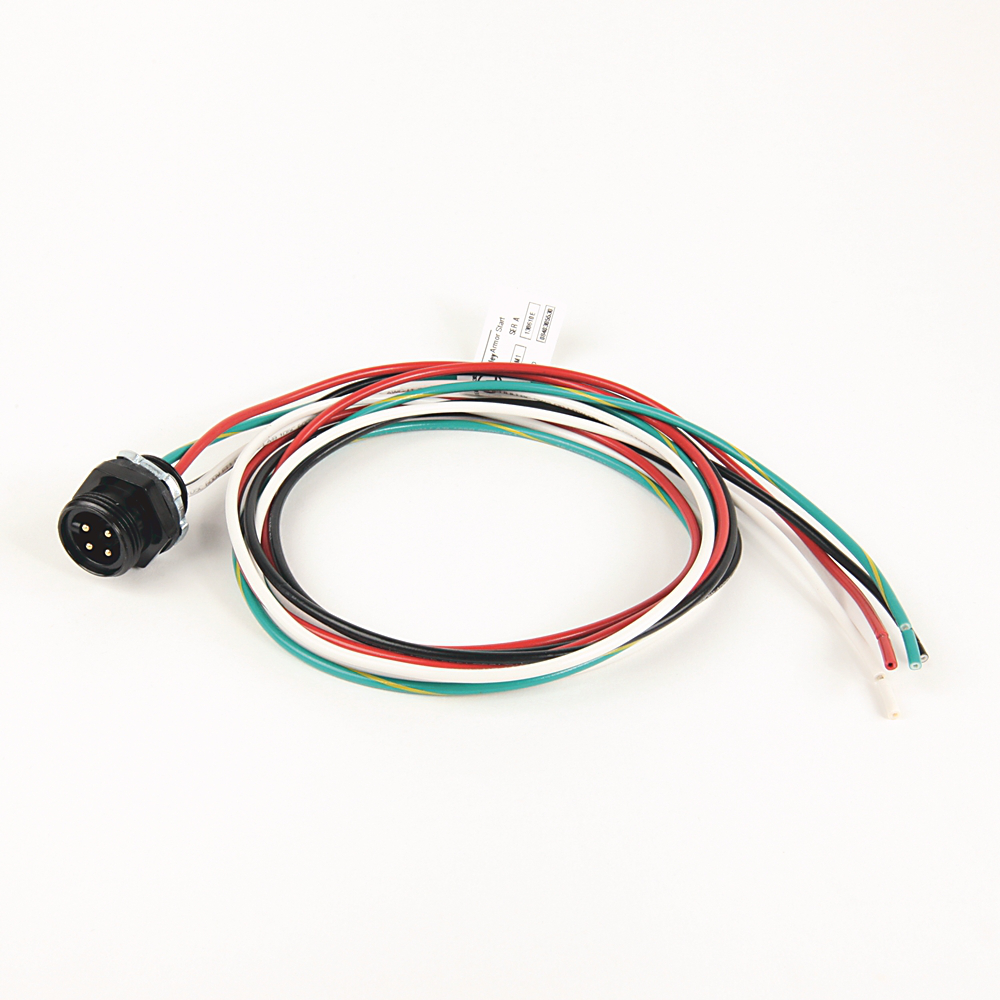

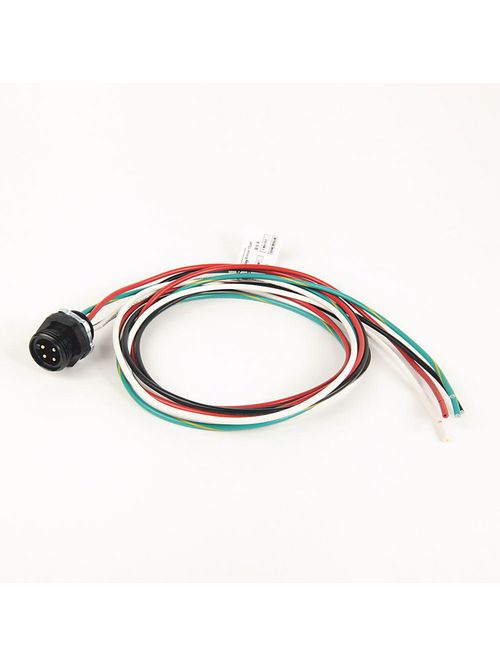

A-B 280-M22M-M1 ArmorConnect M22 Ma
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 280-M22M-M1
North Coast Part # 351053


  • Four-pin T-port connects a single drop line to the trunk
  • Simplified connections and industry standard cables for ease of installation
  • One piece molded design construction
  • Factory molded connectors
  • Three-phase tees and reducer offer flexibility in system design
  • Pre-wired cordsets and patchcords made with crush resistant cable


  • Nema Rating: IP67, UL 4/12, NEMA 6P
  • Connection: M22, Male 4-pin Receptacle, 1 meter

Receptacle Data

  • Enclosure Type Rating: IP67, UL 4/12, NEMA 6P
  • Three Phase Power Receptacles, Male and Female: M22, Male 4-pin Receptacle, 1 meter


  • Pin Layout (Female End): Flying Lead Color Codes:
  • Pin Layout (Male End): Pinout:


GTiN 00662074372270
Size M22
Type Receptacle,Male
Thread Size 1/2 in.-14 NPT Threads
Applications Male
Wire Size 16 AWG
Connection Type M22, Male 4-pin Receptacle, 1 Meter
Family Brand Name Allen Bradley
Cable Length 1 m
Sub Brand ArmorConnect
Product UPC 66207437227
Voltage 600 Volt
Standard KC,UL
Number of Phases 3 Phase
Amperage 10 Amp
