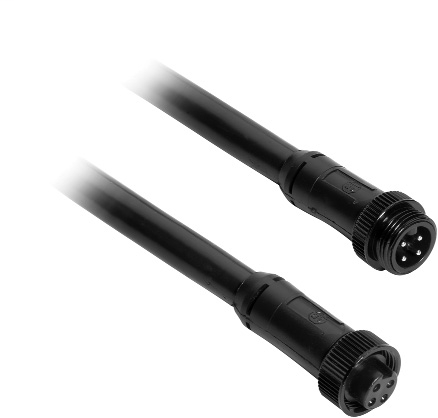

A-B 280-PWRM22E-M14 ArmorConnect 3-

Features

• Four-pin T-port connects a single drop line to the trunk
• Three-phase tees and reducer offer flexibility in system design
• One piece molded design construction
• Factory molded connectors
• Pre-wired cordsets and patchcords made with crush resistant cable
• Simplified connections and industry standard cables for ease of installation

Specifications

Drop Cable Data

• Enclosure Type Rating: IP67, UL 4/12, NEMA 6P
• Cord Type: PWRM22
• Female Connector Style: Straight Female
• Male Connector Style: Cordset (Flying leads)
• Cable Length: 14 m (45.9 ft)

• Length: 14 m (45.9 ft)

Notes

• Pin Layout (Female End): Pinout:
• Pin Layout (Male End): Flying Lead Color Codes:
