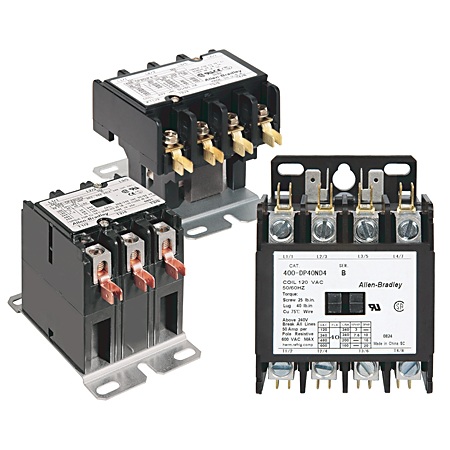

Allen-Bradley 400-DP30NF3 30 Amp 277 Volt 50/60 Hz Definite Purpose Contactor
Product image thumbnail 0
Product image thumbnail 1
$112.72/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 400-DP30NF3
North Coast Part # 152674

Features

  • Double-break contacts
  • Snap-on auxiliary contacts
  • Standard and high fault short circuit current rating (SCCR)
  • UL tested for lighting loads
  • Feed-through wiring
  • Quick-connect terminals

Specifications

  • Maximum Load Current: 30A
  • Line Voltage (V AC): 240/277/480/600
  • Locked Rotor Current (A): 180/150/120
  • Resistive Current Rating (A): 40
  • Max. HP (200/208V) Three Phase: 10
  • Max. HP (240/277V) Three Phase: 10
  • Max. HP (480V) Three Phase: 15
  • Max. HP (600V) Three Phase: 20

Contactor Data

  • Current Rating (Size): 30A
  • Pole Configuration: 3 Poles
  • Coil Voltage: 277V 50/60Hz

Overview

UPC 61132034982
GTiN 00611320349825
Type Definite Purpose Contactor
Coil Voltage 277 VAC at 50/60 Hz
Family Brand Name Allen Bradley
Contact Configuration N.O.
Number of Poles 3 Pole
Sub Brand 400-DP
Conductor Size 16-8 AWG
Temperature Rating -40 to 65 C
Blade Dimensions 2.97 in W x 3 in D
Standard CE,CSA,CUL,UL
