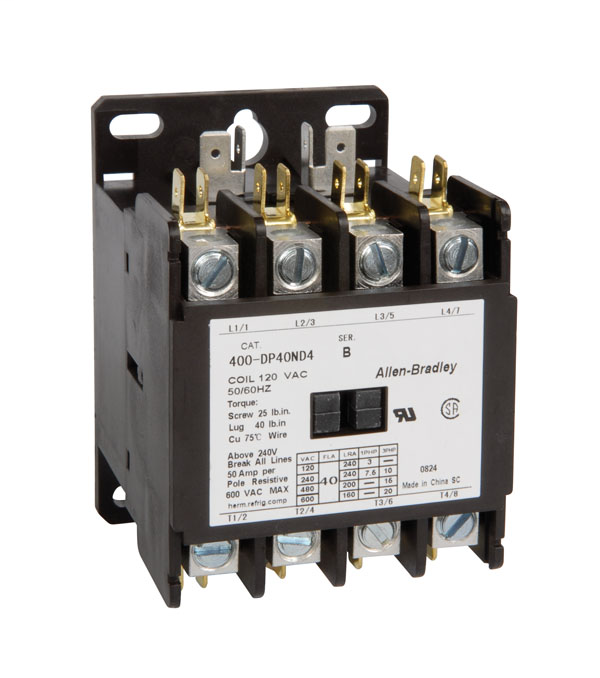

Allen-Bradley 400-DP40ND4 40 Amp Definite Purpose Contactor
Product image thumbnail 0
Product image thumbnail 1
$149.63/ea
In Stock | 3 available at 3 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 400-DP40ND4
North Coast Part # 427341

Features

  • Double-break contacts
  • Feed-through wiring
  • Quick-connect terminals
  • Snap-on auxiliary contacts
  • Standard and high fault short circuit current rating (SCCR)
  • UL tested for lighting loads

Specifications

  • Maximum Load Current: 40A
  • Line Voltage (V AC): 240/277/480/600
  • Locked Rotor Current (A): 240/200/120
  • Resistive Current Rating (A): 50
  • Max. HP (240/277V) Single Phase: 7.5
  • Max. HP (200/208V) Three Phase: 10
  • Max. HP (240/277V) Three Phase: 10
  • Max. HP (480V) Three Phase: 20
  • Max. HP (600V) Three Phase: 20

Contactor Data

  • Current Rating (Size): 40A
  • Pole Configuration: 4 Poles
  • Coil Voltage: 120V 50/60Hz

Overview

UPC 61132035003
GTiN 00611320350036
Type Definite Purpose Contactor
Coil Voltage 120 V
Family Brand Name Allen Bradley
Contact Configuration N.O.
Number of Poles 4 Pole
Sub Brand 400-DP
Voltage 0-120 VAC at 50/60 Hz
Standard CE,CSA,CUL,UL
