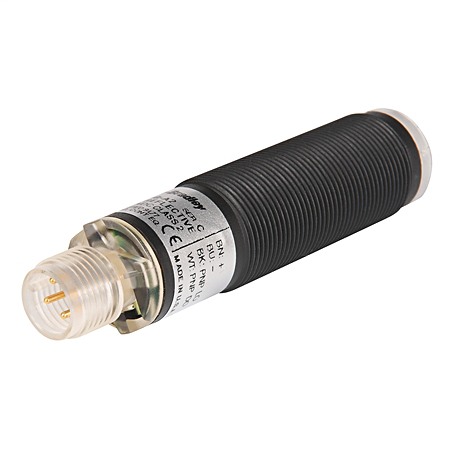

Allen-Bradley 42CA-D1MPAE-D4 18 mm Cylindrical Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42CA-D1MPAE-D4
North Coast Part # 547294


  • Patented ASIC design offers linear sensitivity adjustment, stability indication and excellent noise immunity
  • Flat lens reduces dust collection
  • 1 ms response time on most models
  • Extended range high-speed models with a 0.5 ms response time
  • Selectable light or dark operate on background suppression models
  • NPN or PNP outputs
  • Two status indicators for power, output, unstable operation and short-circuit protection
  • 10...30V DC operation
  • Complementary light and dark operate outputs
  • Visible red status indicator on polarized retroreflective models
  • Input to disable light source on transmitted beam emitter for testing and scanning purposes


  • Sensing Range: 100mm (3.9in)
  • Sensing Beam: Infrared LED
  • Voltage Rating: DC - 2 Complementary LO/DO Outputs
  • Output: Source (PNP)
  • Connection: 4-pin DC Micro QD

Photoelectric Sensor Data

  • Sensing Mode: Standard Diffuse
  • Maximum Sensing Distance: 100mm (3.9in)
  • Light Source: Infrared LED
  • Operating Voltage/Mode: DC - 2 Complementary LO/DO Outputs
  • Sensitivity Adjust: With Adjustment
  • Output Type: Source (PNP)
  • Connection Type: 4-pin DC Micro QD


  • Connections Media: DC Micro(M12) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m


  • 889D-F4AC-5


UPC 61259852842
Item Long Description 18 mm Cylindrical Sensor
GTiN 00612598528424
Type Cylinder, Screw-Thread
Material Plastic
Applications Standard Diffuse
Connection Type 4-pin DC Micro QD
Temperature Rating -25 to 70 C
Family Brand Name Allen Bradley
Light Source Multi-Coloured LED
TC Connection 4 Pin Micro Quick Disconnect
Output 10 mA
Response Time 1 Millisecond
Blade Dimensions 16.5 mm dia x 79.4 mm L
Sensing Range 3
Enclosure Plastic
Voltage 0-30 VDC
Mounting Type 18 Mm Cylindrical,18mm Mount
Sensor Type Infrared
