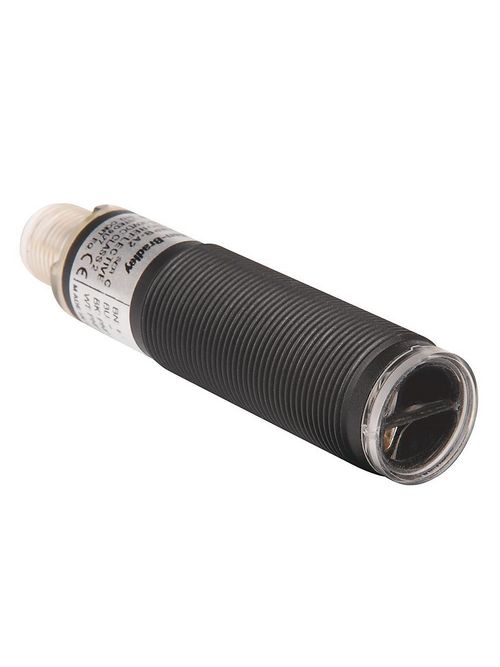

Allen-Bradley 42CA-E1EZB1-D4 18 mm Cylindrical Sensor
Product image thumbnail 0
Product image thumbnail 1
$40.66/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42CA-E1EZB1-D4
North Coast Part # 598743

Features

  • Flat lens reduces dust collection
  • Visible red status indicator on polarized retroreflective models
  • NPN or PNP outputs
  • Input to disable light source on transmitted beam emitter for testing and scanning purposes
  • Selectable light or dark operate on background suppression models
  • Extended range high-speed models with a 0.5 ms response time
  • Complementary light and dark operate outputs
  • 1 ms response time on most models
  • 10...30V DC operation
  • Two status indicators for power, output, unstable operation and short-circuit protection
  • Patented ASIC design offers linear sensitivity adjustment, stability indication and excellent noise immunity

Specifications

  • Sensing Range: 16m (52.5ft)
  • Sensing Beam: Infrared LED
  • Voltage Rating: DC - Transmitted Beam Source
  • Output: None (transmitted beam light source)
  • Connection: 4-pin DC Micro QD

Photoelectric Sensor Data

  • Sensing Mode: Transmitted Beam Emitter
  • Maximum Sensing Distance: 16m (52.5ft)
  • Light Source: Infrared LED
  • Operating Voltage/Mode: DC - Transmitted Beam Source
  • Sensitivity Adjust: Without Adjustment
  • Output Type: None (transmitted beam light source)
  • Connection Type: 4-pin DC Micro QD

Receiver Data

  • Receiver: Transmitted Beam Receiver is not selected

Accesories

  • Connections Media: DC Micro(M12) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m

Accessories

  • 889D-F4AC-5

Overview

UPC 61259889616
GTiN 00612598896165
Type Cylinder, 1-Way System
Material Plastic
Applications Transmitted Beam Source
Connection Type M12 Connector, Screw-Thread
Family Brand Name Allen Bradley
Light Source Infrared Light (IR)
TC Connection 4 Pin Micro Quick Disconnect
Output 30 mA
Response Time Not Applicable
Blade Dimensions 18 mm dia x 79.4 mm L
Sensing Range 3,16000,16000
Enclosure Plastic
Voltage 10-30 VDC
Mounting Type 18 Mm Cylindrical,18mm Mount
Standard CCC,CE,CUL,KC,UL
Sensor Type Infrared
