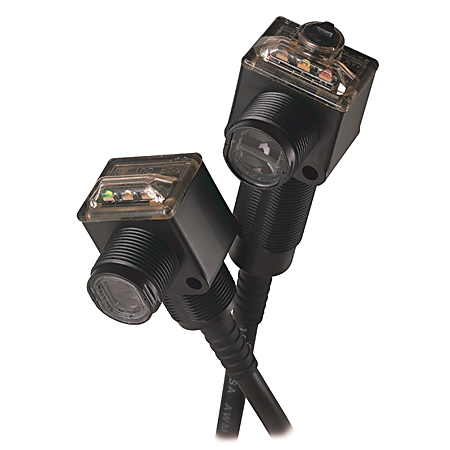

Allen-Bradley 42EF-G1MNA-F4 Rightsight Photo Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$117.95/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42EF-G1MNA-F4
North Coast Part # 15717

Features

  • Short circuit protection across entire voltage range
  • Universal 18 mm mounting at base and nose, and through-hole mounting
  • Applications include:
  • Incorporates embedded IO-Link Technology in select sensors to help minimize downtime and increase productivity
  • Patented housing design with 1200 psi wash-down ratings
  • 360° visible indicators

Specifications

  • Sensing Beam: Infrared LED
  • Sensing Range: Depends on Fiber Optic
  • Type: RightSight Fiberoptic

Model Selection For Rightsight

  • Model Selection Information: Selection for RightSight Standard

Photoelectric Sensor Data

  • Sensing Mode: Infrared Glass Fiber Optic
  • Light Source: Infrared LED
  • Maximum Sensing Distance: Depends on Fiber Optic
  • Operating Voltage/Mode: DC - 2 Complementary LO/DO Outputs
  • Output Type: Sink (NPN)
  • Sensitivity Adjustment: Manually Adjustable
  • Connection Type: 4-pin DC Micro QD on 152mm (6in) pigtail
  • Response Time: 1 ms
  • Voltage Rating: 10.8...30V DC
  • IO Link Enabled: No

Accessory Items

  • Connection Media: DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m
  • Fiber Optic Cable: No Fiber Cable Selected

Accessories

  • 889D-F4AC-5

Overview

UPC 66246859582
Item Long Description RightSight Photosensor
GTiN 00662468595827
Voltage 10.8-30 Volt
Type Manual Adjustment
Applications Fiber Optic Large Aperture
Connection Type 4-Pin Micro Quick Disconnect on Pigtail
Family Brand Name Allen Bradley
TC Connection 4 Pin Micro QD on Pigtail
Output NPN
Circuit Type NPN
Light Source Infrared
Sub Brand RightSight
Mounting Type 18 Mm Cylindrical
Sensor Type Infrared
