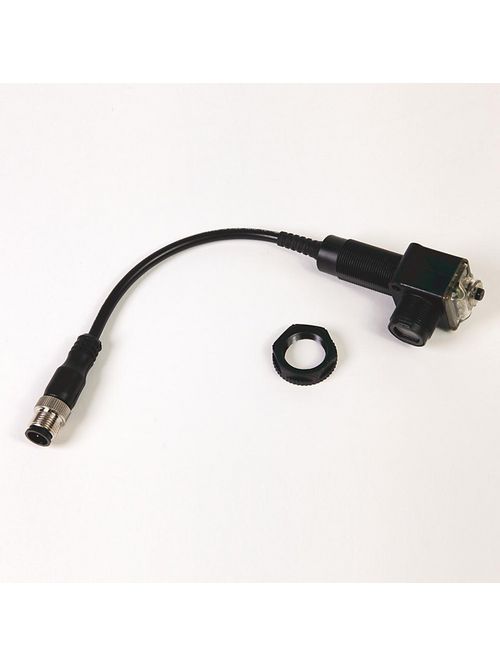

A-B 42EF-P8KBC-A2 RightSight Photos
Product image thumbnail 0
Product image thumbnail 1
$132.73/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42EF-P8KBC-A2
North Coast Part # 683489

Features

  • PNP and NPN outputs
  • Universal 18 mm mounting at base and nose, and through-hole mounting
  • Class I visible laser
  • Short circuit and reverse polarity protection
  • 360° visible status indicators
  • Patented compact right angle housing
  • Teach button or potentiometer

Specifications

  • Type: RightSight Laser Pol. Retro

Model Selection For Rightsight

  • Model Selection Information: Selection for LaserSight RightSight

Photoelectric Sensor Data

  • Sensing Mode: Polarized Retroreflective
  • Light Source: Red Laser
  • Maximum Sensing Distance: 15m (49ft)
  • Operating Voltage/Mode: DC - Dark Operate
  • Output Type: Both Sink (NPN) and Source (PNP)
  • Sensitivity Adjustment: Teachable
  • Connection Type: 2m (6.5ft) cable
  • Response Time: 1 ms
  • Voltage Rating: 24V DC ± 10%
  • IO Link Enabled: No

Overview

UPC 78118088983
GTiN 00781180889837
Voltage 24 Volt
Type Teach Button, Front Through Hole
Applications Polarized Retroreflective
Connection Type 2 m Cable
Family Brand Name Allen Bradley
TC Connection 2 M (6.5 Ft) Cable
Output NPN & PNP W/ SCP
Circuit Type NPN/PNP with SCP
Light Source Laser
Sub Brand RightSight
Mounting Type Front Through Hole
Standard KC
Sensor Type Laser
