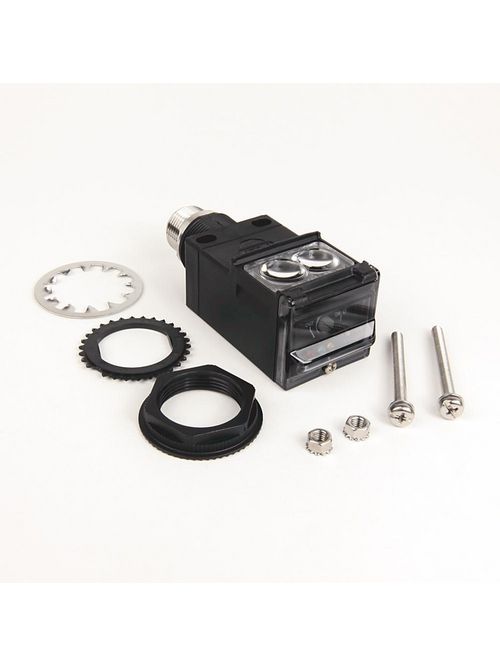

Allen-Bradley 42GRP-9002 Series 9000 General Purpose Sensor
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42GRP-9002
North Coast Part # 212817


  • High operating margins (excess gain)
  • Fiber optic cable locking mechanism
  • Wide range of supply voltages
  • Teach models available


  • Sensing Range: 1.52m (5ft) with White Paper 216mm x 279.4mm (8.5in x 11in)
  • Output: 70-264V AC/DC, SPDT EM Relay
  • Type: Series 9000 Diffuse

Model Selection For Series 9000 Standard And Timing

  • Model Selection Information: Selection for Series 9000 Standard and Timing

Photoelectric Sensor Data

  • Output Function: Standard (On / Off)
  • Sensing Mode: Standard Diffuse
  • Maximum Sensing Distance: 1.52m (5ft) with White Paper 216mm x 279.4mm (8.5in x 11in)
  • Operating Voltage / Output Type: 70-264V AC/DC, SPDT EM Relay
  • Output Energized: LO or DO selectable
  • Connection Type: 2m (6.5ft) 300V cable


UPC 66207386899
GTiN 00662073868996
Type Standard, 1-Way System
Circuit Type Relay Contact
Applications Standard Diffuse
Connection Type Cable
Family Brand Name Allen Bradley
TC Connection 2m (6.5ft), 300V Cable
Output 1000 mA
Blade Dimensions 40 mm L x 41.91 mm W x 103.63 mm H
Sub Brand Series 9000
Voltage 70-264 VAC/VDC
Standard CCC,KC
