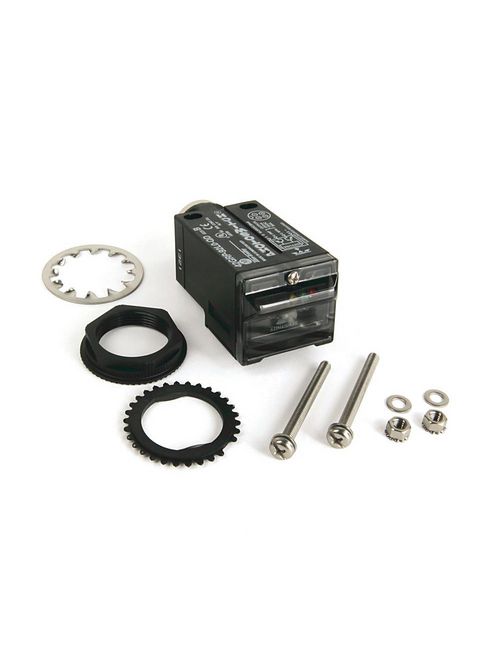

Allen Bradley 42GRP-92L0-QD 10 to 30 VDC 30 mA NPN/PNP Dark/Light Standard Diffuse Photoelectric Sensor
Product image thumbnail 0
Product image thumbnail 1
$300.16/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42GRP-92L0-QD
North Coast Part # 1013080

Features

  • Both NPN and PNP outputs (DC)
  • Selectable light/dark operate
  • Micro, mini QD, 2 m cable connections
  • Robust 30 mm housing
  • Visible red beam for easy alignment
  • Class I laser light source
  • SPDT relay output (AC)

Specifications

  • Sensing Range: 800mm (2.63ft)
  • Voltage Rating: 10-30V DC, NPN/PNP Transistor

Model Selection For Lasersight 9000

  • Product Type: LaserSight 9000

Photoelectric Sensor Data

  • Sensing Mode: Standard Diffuse
  • Maximum Sensing Distance: 800mm (2.63ft)
  • Operating Voltage / Output Type: 10-30V DC, NPN/PNP Transistor
  • Output Mode: LO or DO selectable
  • Connection Type: Micro Quick-Disconnect (DC)
  • Response Time: 500 ms

Overview

UPC 66207442666
GTiN 00662074426669
Voltage 10-30 Volt
Type General Purpose, Standard On/Off
Applications Laser Diffuse
Connection Type 4-pin DC Micro (M12) QD
Family Brand Name Allen Bradley
TC Connection 4-Pin DC Micro QD
Sub Brand Photoswitch
Material Valox Housing, Acrylic Lens
Circuit Type NPN/PNP
Temperature Rating -10 to 50 C
Enclosure Type NEMA 3, 4X, 6P, 12, 13
Light Source Class 1 Laser
Response Time 0.5 Millisecond
Blade Dimensions 40 mm W x 74.93 mm H
Environmental Conditions 5 - 95% Relative Humidity
Standard CCC,CSA,CUL,KC,UL
Sensing Range 2.63 ft
Sensor Type Class 1 Laser
