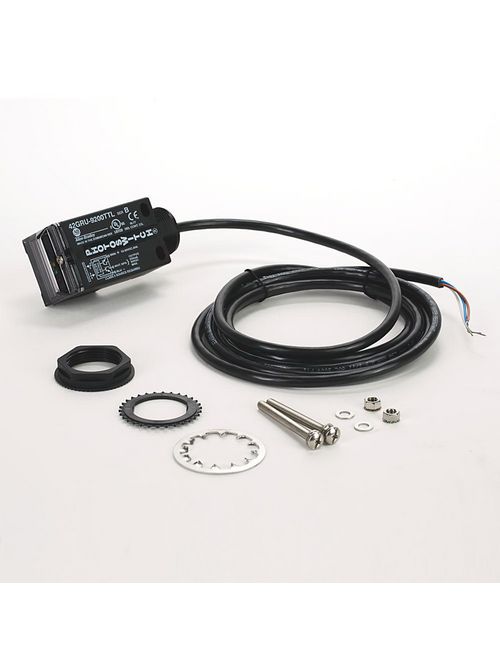

Allen-Bradley 42GRU-9200 Series 9000 General Purpose Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42GRU-9200
North Coast Part # 155315


  • Wide range of supply voltages
  • Teach models available
  • Fiber optic cable locking mechanism
  • High operating margins (excess gain)


  • Sensing Range: 4.87m (16ft) with 76mm (3in) Reflector
  • Output: 10-40V DC, NPN/PNP Transistor
  • Type: Series 9000 Retroreflective

Model Selection For Series 9000 Standard And Timing

  • Model Selection Information: Selection for Series 9000 Standard and Timing

Photoelectric Sensor Data

  • Output Function: Standard (On / Off)
  • Sensing Mode: Polarized Retroreflective
  • Maximum Sensing Distance: 4.87m (16ft) with 76mm (3in) Reflector
  • Operating Voltage / Output Type: 10-40V DC, NPN/PNP Transistor
  • Output Energized: LO or DO selectable
  • Connection Type: 2m (6.5ft) 300V cable


UPC 66207386847
Item Long Description GP Sensor, Standard ON/OFF, Polarized Retroreflective, DC - NPN and PNP, 2m (6.5ft), 300V Cable
GTiN 00662073868477
Type General Purpose, Standard, 1-Way System
Applications Polarized Retroreflective
Connection Type 2 m 300 V Cable
Family Brand Name Allen Bradley
TC Connection 2m (6.5ft), 300V Cable
Sub Brand Series 9000
Circuit Type NPN/PNP
Light Source Infrared Light
Output 250 mA
Blade Dimensions 40 mm L x 41.91 mm W x 103.63 mm H
Mounting Type Bracket, Tilt/Swivel
