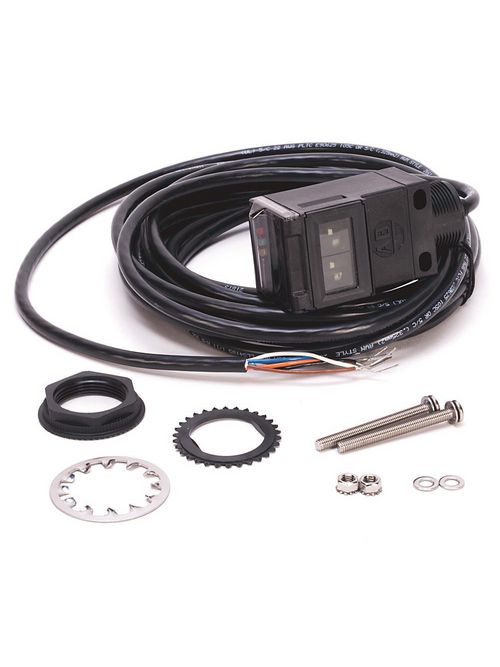

Allen-Bradley 42GRU-9202 70 to 264 VAC/VDC 15 mA SPDT EM Relay Dark/Light Polarized Retroreflective Photoelectric Sensor
Product image thumbnail 0
Product image thumbnail 1
$145.16/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42GRU-9202
North Coast Part # 155328

Features

  • Teach models available
  • Wide range of supply voltages
  • High operating margins (excess gain)
  • Fiber optic cable locking mechanism

Specifications

  • Sensing Range: 4.87m (16ft) with 76mm (3in) Reflector
  • Output: 70-264V AC/DC, SPDT EM Relay
  • Type: Series 9000 Retroreflective

Model Selection For Series 9000 Standard And Timing

  • Model Selection Information: Selection for Series 9000 Standard and Timing

Photoelectric Sensor Data

  • Output Function: Standard (On / Off)
  • Sensing Mode: Polarized Retroreflective
  • Maximum Sensing Distance: 4.87m (16ft) with 76mm (3in) Reflector
  • Operating Voltage / Output Type: 70-264V AC/DC, SPDT EM Relay
  • Output Energized: LO or DO selectable
  • Connection Type: 2m (6.5ft) 300V cable

Overview

UPC 66207386851
GTiN 00662073868514
Type Standard, Reflection System
Circuit Type Relay Contact
Applications Polarized Retroreflective
Connection Type Cable
Family Brand Name Allen Bradley
Light Source Infrared Light (IR)
TC Connection 2m (6.5ft), 300V Cable
Output 1000 mA
Blade Dimensions 40 mm L x 41.91 mm W x 103.63 mm H
Sub Brand Series 9000
Voltage 70-264 VAC/VDC
Standard C-TICK,CCC
