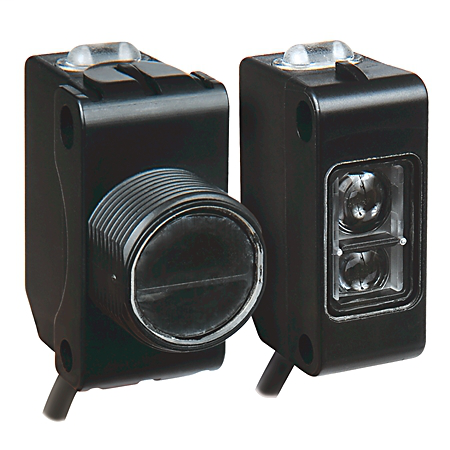

Allen Bradley 42JS-B2MNB1-F4 VisiSight Photoelectric Sensor
Product image thumbnail 0
Product image thumbnail 1
$85.98/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42JS-B2MNB1-F4
North Coast Part # 1428913

Features

  • Clear object detection
  • Color and contrast detection
  • IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
  • Class 1 "Eye Safe" red laser beam
  • Linear sensitivity adjustment knob or no adjustment models
  • Visible red LED light source for ease of alignment
  • Teach push button for sensitivity and LO/DO selection
  • Incorporates embedded IO-Link communication protocol in select 42JT sensors to help minimize downtime and increase productivity
  • IP69K and ECOLAB rated enclosure
  • Unique "auto PNP/NPN" output reduces stocking cost and simplifies installation and maintenance
  • IP67 rated enclosure

Specifications

  • Sensing Beam: Visible Red

Photoelectric Sensor Data

  • Sensing Mode: Background Suppression
  • Light Source: Visible Red
  • Operating Voltage/Mode: DC - 2 Complementary LO/DO Outputs
  • Output Type: Sink (NPN)
  • Sensitivity Adjustment: Standard w/out Adjustment
  • Sensing Range: 55 mm - Fixed Range
  • Connection Type: 4-pin DC Micro QD on 152mm (6in) pigtail

Accessory Items

  • Connection Media: DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m

Accessories

  • 889D-F4AC-5

Overview

UPC 61259850840
GTiN 00612598508402
Connection Type 4-pin DC Micro QD
Family Brand Name Allen Bradley
