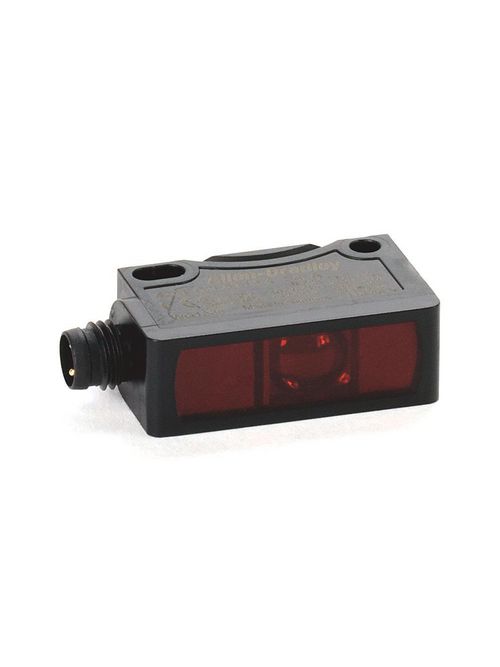

Allen-Bradley 42JT-C2LAT1-P4 42jt Visisight Photoelectric Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$162.59/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42JT-C2LAT1-P4
North Coast Part # 1163810

Features

  • IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
  • Color and contrast detection
  • IP69K and ECOLAB rated enclosure
  • IP67 rated enclosure
  • Clear object detection
  • Teach push button for sensitivity and LO/DO selection
  • Linear sensitivity adjustment knob or no adjustment models
  • Incorporates embedded IO-Link communication protocol in select 42JT sensors to help minimize downtime and increase productivity
  • Unique "auto PNP/NPN" output reduces stocking cost and simplifies installation and maintenance
  • Class 1 "Eye Safe" red laser beam
  • Visible red LED light source for ease of alignment

Specifications

Photoelectric Sensor Data

  • Sensing Mode: Clear Object
  • Light Source: Visible Red LED
  • Operating Voltage/Mode: DC - LO or DO selectable
  • OutputType: Auto Source (PNP) / Sink (NPN)
  • Sensitivity Adjustment: Push button or Remote Teach
  • Sensing Range: 2 m (6.5 ft)
  • Connection Type: 4-pin Pico QD
  • IO Link Enabled: Yes

Accessory Items

  • Connection Media: DC Pico(M8) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m

Accessories

  • 889P-F4AB-5

Overview

UPC 88563026867
Item Long Description 42JT VisiSight Photoelectric Sensor
GTiN 00885630268675
Type Rectangular
Applications M8 Clear Object Detection
Connection Type 2 m Cable
Family Brand Name Allen Bradley
Sensing Range 6.5 ft
Sub Brand Photoswitch, VisiSight
Material ABS
Temperature Rating -20 to 60 C
Enclosure Type IP67, IP69K
Light Source 660 nm Visible Red LED
Output Auto PNP 100 mA IO-Link
Response Time 0.5 Millisecond
Environmental Conditions 20 - 80 C Storage, 5 - 95% Relative Humidity Non-Condensing, 30 g Shock, 10 - 55 Hz Vibration
Voltage 10-30 Volt
Standard CCC
