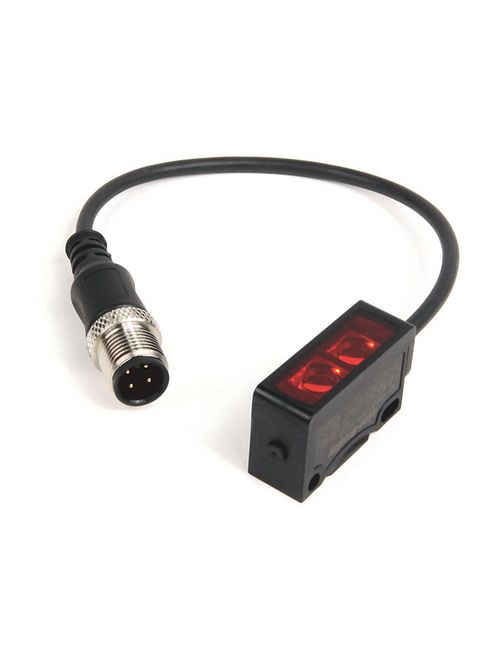

Allen-Bradley 42JT-D2LAT1-F4 Visisight Photoelectric Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$98.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42JT-D2LAT1-F4
North Coast Part # 930693

Features

  • IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
  • Incorporates embedded IO-Link communication protocol in select 42JT sensors to help minimize downtime and increase productivity
  • Linear sensitivity adjustment knob or no adjustment models
  • Clear object detection
  • IP67 rated enclosure
  • Color and contrast detection
  • IP69K and ECOLAB rated enclosure
  • Unique "auto PNP/NPN" output reduces stocking cost and simplifies installation and maintenance
  • Visible red LED light source for ease of alignment
  • Class 1 "Eye Safe" red laser beam
  • Teach push button for sensitivity and LO/DO selection

Specifications

Photoelectric Sensor Data

  • Sensing Mode: Standard Diffuse
  • Light Source: Visible Red LED
  • Operating Voltage/Mode: DC - LO or DO selectable
  • OutputType: Auto Source (PNP) / Sink (NPN)
  • Sensitivity Adjustment: Push button or Remote Teach
  • Sensing Range: 3 ... 800mm (0.12 ... 31.5 in.)
  • Connection Type: 4-pin DC Micro QD on 152mm (6in) pigtail
  • IO Link Enabled: Yes

Accessory Items

  • Connection Media: DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m

Accessories

  • 889D-F4AC-5

Overview

UPC 88563016093
Item Long Description 42JT VisiSight Photoelectric Sensor
GTiN 00885630160931
Type Standard
Material Plastic
Circuit Type PNP/NPN
Applications Diffuse
Connection Type M12 Connector
Family Brand Name Allen Bradley
Output 100 mA
Blade Dimensions 20 mm L x 12 mm W x 34 mm H
Sensing Range 31.5 in
Sub Brand VisiSight
Voltage 10-30 Volt
Standard C-TICK,KC
