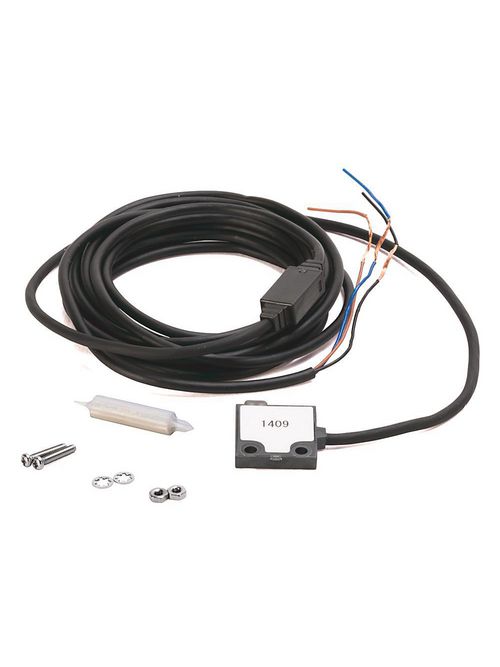

A-B 42KA-D2JPHC-A2 Ultra Mini Photo
Product image thumbnail 0
Product image thumbnail 1
$111.38/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42KA-D2JPHC-A2
North Coast Part # 13923

Features

  • NPN or PNP output models
  • Subminiature package style
  • Highly visible status Indicators
  • Models with and without sensitivity adjustment
  • 2 m cable connection
  • Three sensing modes

Specifications

  • Sensing Beam: Visible Red
  • Sensing Range: 50mm (2in)
  • Voltage Rating: DC - Light Operate
  • Output: Source (PNP)
  • Connection: 2m (6.5ft) cable

Photoelectric Sensor Data

  • Sensing Mode: Standard Diffuse
  • Light Source: Visible Red LED
  • Maximum Sensing Distance: 50mm (2in)
  • Operating Voltage/Mode: DC - Light Operate
  • Output Type: Source (PNP)
  • Sensitivity Adjustment: No
  • Connection Type: 2m (6.5ft) cable

Overview

UPC 66207207942
GTiN 00662072079423
Type Standard, Ultra Mini
Material Plastic
Circuit Type PNP
Connection Type Cable
Temperature Rating -25 to 55 C
Family Brand Name Allen Bradley
Enclosure Type NEMA 1
TC Connection 2 M (6.5 Ft) Cable
Output 80 mA
Blade Dimensions 19.5 mm L x 3.5 mm W x 20 mm H
Enclosure Plastic
Voltage 12-24 VDC
Mounting Type Front Through Hole,Front Through Hole
Standard KC
Sensor Type Visible Red
