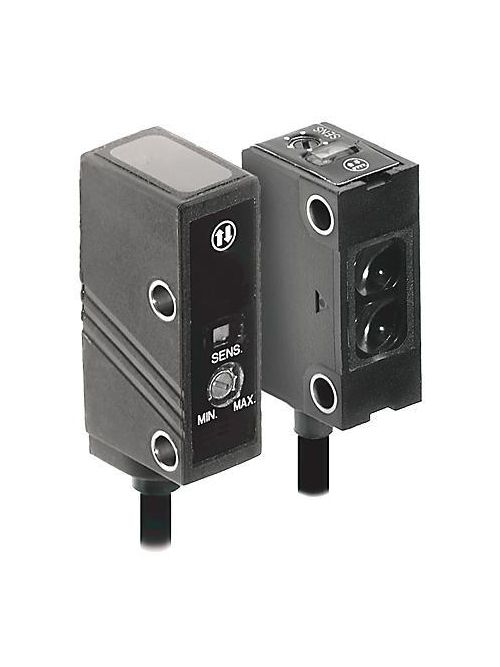

Allen-Bradley 42KB-T1LPSQ-Y3 Micro Rectangular Sensor
Product image thumbnail 0
Product image thumbnail 1
$181.24/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42KB-T1LPSQ-Y3
North Coast Part # 161438

Specifications

  • Sensing Beam: Infrared
  • Voltage Rating: 12-24V DC - LO or DO selectable
  • Output: Source (PNP)
  • Connection: 3-pin Pico QD on 152 mm (6 inch) pigtail

Photoelectric Sensor Data

  • Sensing Mode: Transmitted Beam
  • Maximum Sensing Distance: 7m (23.0ft)
  • Light Source: Infrared LED
  • Operating Voltage/Mode: 12-24V DC - LO or DO selectable
  • Output Type: Source (PNP)
  • View: Side
  • Sensitivity Adjustment: Yes
  • Connection Type: 3-pin Pico QD on 152 mm (6 inch) pigtail

Overview

UPC 61132003796
GTiN 00611320037968
Voltage 12-24 Volt
Type Manual Adjustment, Side Through Hole, Micro Rectangular
Applications Transmitted Beam Pair
Connection Type 3-Pin Pico M8 Quick Disconnect on Cable
Family Brand Name Allen Bradley
TC Connection 3 Pin Pico M8 QD on Cable
Output PNP
Enclosure Plastic
Material Plastic
Circuit Type PNP
Enclosure Type NEMA 6P
Mounting Type Side Through Hole
Standard CE,CSA,CUL,KC,UL
Sensor Type Infrared
