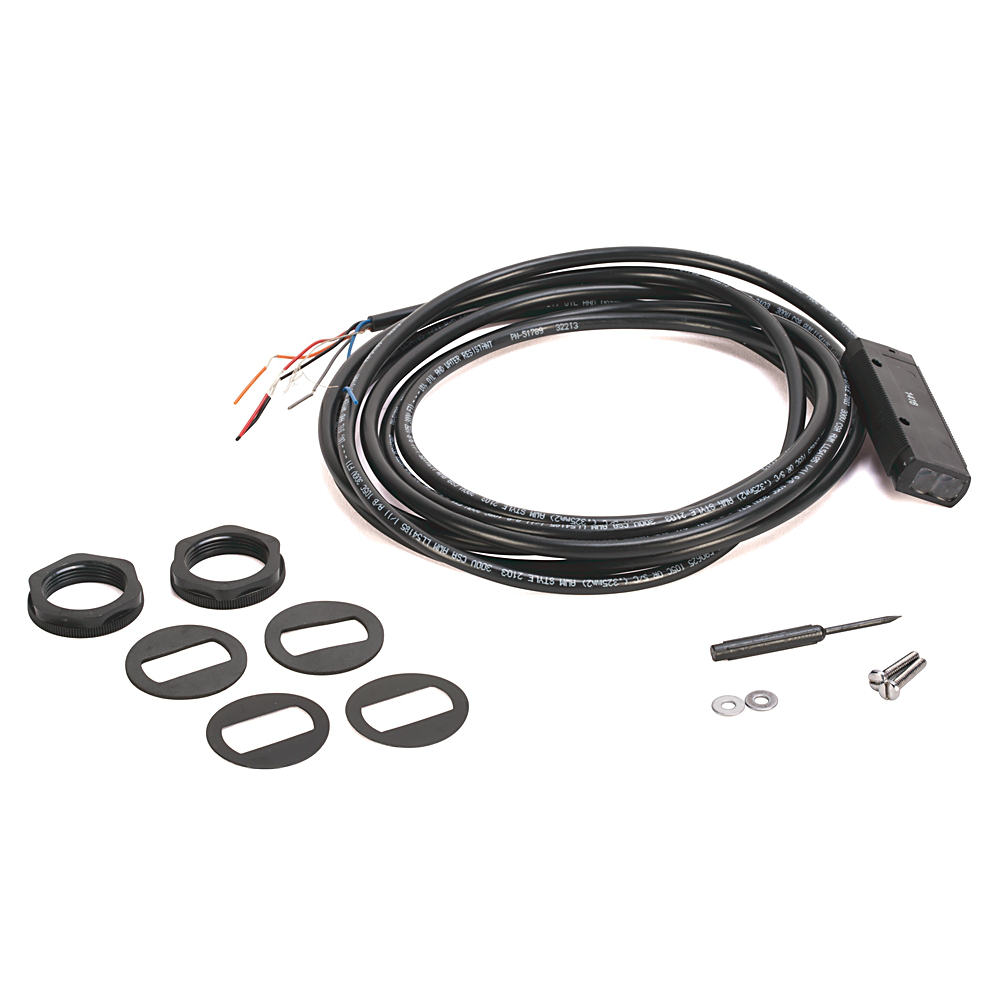

Allen-Bradley 42SRR-6002-QD Compact Photo Sensor
$239.31/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 42SRR-6002-QD
North Coast Part # 16272

Specifications

  • Connection: 4-pin DC Micro QD
  • Response Time: 5ms
  • Operating Voltage: 10-30V DC
  • Output Type: Both Sink (NPN) and Source (PNP)
  • Operating Mode: Light Operate

Categories

Overview

UPC 66207383962
GTiN 00662073839620
Type Compact, Four-Turn Potentiometer
Applications Transmitted Beam Receiver
Connection Type 4-Pin DC Micro
Family Brand Name Allen Bradley
TC Connection 4 Pin DC Micro QD
Material Noryl Housing, Acrylic Lens, Neoprene Cover
Circuit Type NPN and PNP
Temperature Rating -40 to 56 C
Enclosure Type NEMA 3, 4X, 6, 12, 13
Light Source 880 nm Infrared LED
Output 200 mA
Response Time 5 Millisecond
Blade Dimensions 12.7 mm W x 25.4 mm H
Environmental Conditions 5 - 95% Relative Humidity
Sub Brand Photoswitch
Voltage 24 Volt
Standard CCC,CE,CSA,CUL,KC,UL
