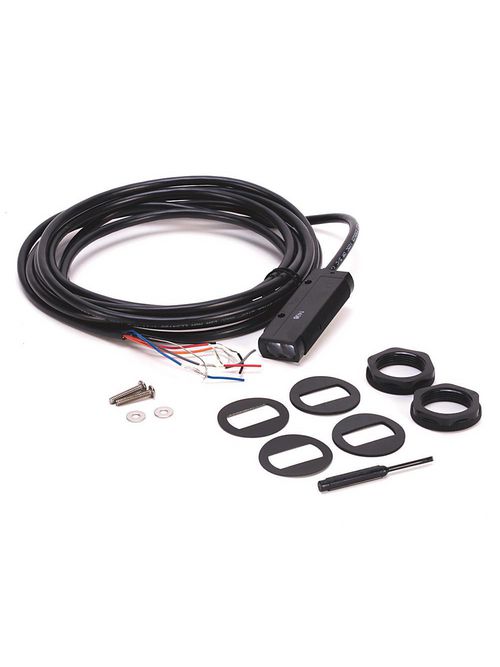

Allen-Bradley 42SRR-6003-QD Compact Photo Sensor
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 42SRR-6003-QD
North Coast Part # 17053


  • Connection: 4-pin DC Micro QD
  • Output Type: Both Sink (NPN) and Source (PNP)
  • Operating Mode: Dark Operate
  • Response Time: 5ms
  • Operating Voltage: 10-30V DC


UPC 66207383964
GTiN 00662073839644
Type Compact, Four-Turn Potentiometer
Applications Transmitted Beam Receiver
Connection Type 4-Pin DC Micro
Family Brand Name Allen Bradley
TC Connection 4 Pin DC Micro QD
Material Noryl Housing, Acrylic Lens, Neoprene Cover
Circuit Type NPN/PNP
Temperature Rating -40 to 56 C
Enclosure Type NEMA 3, 4X, 6, 12, 13
Light Source 880 nm Infrared LED
Output 15 mA
Response Time 5 Millisecond
Blade Dimensions 12.7 mm W x 25.4 mm H
Environmental Conditions 5 - 95% Relative Humidity
Sub Brand Photoswitch
Voltage 24 Volt
