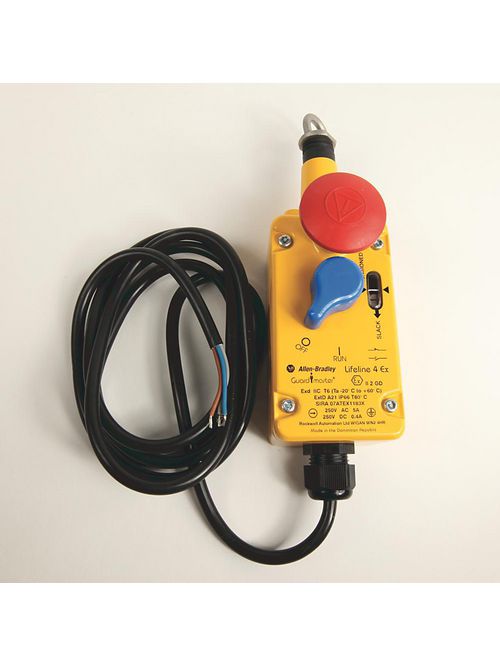

Allen-Bradley 440E-H13046 Guardmaster Cable Pull Switch

Features

• Conforms to EN 60079 and IEC 60079
• For use in potentially explosive atmospheres
• Isolates pneumatic power within 5° of guard movement
• Switches pneumatic power with up to a 75 meter span
• Includes universal mounting and operation
• Suitable for use in European Zone 1 and 2 environments
• Includes lid mounted emergency stop button, designed to conform to ISO 850
• Provides switch lockout on cable pulled and cable slack
• Includes cable status indicator on switch lid
• Switch lockout with indication of rope pulled and rope slack
• Positive mode action, flameproof contact block
• Provide switch span of 75...125 m
• Lid mounted emergency stop button, designed to EN418
• Can be used as a hinge pin with light and medium weight guard doors on pneumatic machinery

Specifications

Product Family Selection

• 440 Ex Range: The 440 Ex Range family of safety switches are specifically designed for potentially explosive atmospheres. They incorporate housing construction and sealed flameproof contact blocks that conform to:
• Product Family: EX Lifeline 4 Explosion proof cable pull and Pushbutton actuated safety Interlock switch
• Model Type: Cable and Push Button Actuated Emergency Stop
• Contacts (Safety/Auxiliary): 1 Normally Closed, 1 Normally Open
• Connection: 2 Meter Cable (6.5 ft)
