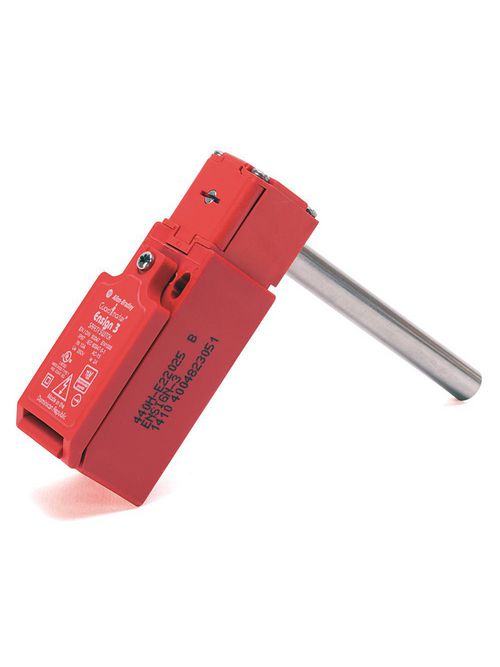

A-B 440H-E22065 Guardmaster Ensign
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$71.73/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen-Bradley / Rockwell
Mfg Catalog # 440H-E22065
North Coast Part # 1013762

Features

  • Adjustable cam for changing degree of operation
  • 106 x 25 mm housing
  • Fits on 25 mm tubing

Specifications

Hinge Switch Data

  • Product Family: Ensign 3
  • Contacts (Safety/Auxiliary): 2 Normally Closed / 1 Normally Open
  • BBM or MBB: Break Before Make
  • Shaft Type: Pre-Bored
  • Actuator Shaft: Length: 30MM Diameter: 16MM
  • Conduit Entry / Connection Type: M16 Conduit 1/2in Adaptor

Specifications

  • Standard: IEC 60947-5-1, ISO 14119, ISOTR 12100
  • Pneumatic Fluid: Compressed air or neutral gas
  • Pressure Range: 2 to 8 Bars
  • Connection Type: Push in fittings for standard 4 mm diameter nylon tube, internal diameter 2.5 mm
  • Flow Rate: 138 NL/min.
  • Mechanical Life: 1,000,000 Operations
  • Temperature: 10 to 60 degrees C (50 to 140 degrees F)

Categories

Overview

GTiN 00781180757662
Type Hinged
Material Plastic
Standard IEC 60947-5-1,ISO 14119,ISOTR 12100
Connection Type M16 Conduit, 1/2 in NPT Adapter
Contact Type Break Before Make
Family Brand Name Allen Bradley
TC Connection M16 Conduit, 1/2in. NPT adptr
Actuator Hollow Hinge Shaft 30mmx16mm
Contact Configuration 2 N.C. Safety, 1 N.O Aux
Sub Brand Ensign 3, Guardmaster
Product UPC 78118075766
