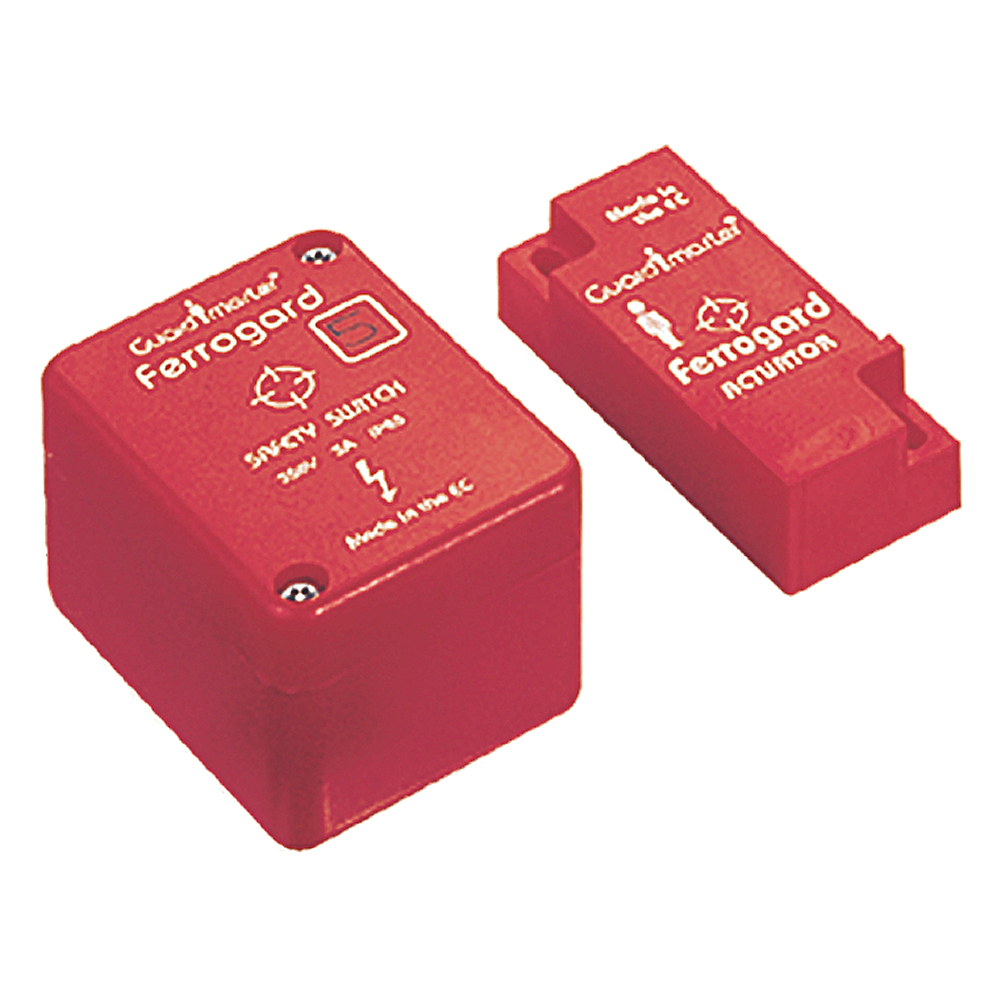

Allen-Bradley 440N-G02009 Guardmaster Non-Contact Switch
$247.31/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 440N-G02009
North Coast Part # 17329

Features

  • Stainless steel housing
  • Plastic rectangular housing (IP67)
  • High switching current (2 A, 250V AC; 1 A, 24V DC)
  • High tolerance to misalignment
  • High switching current (2 A, 250V AC; 1 A, 24V DC)
  • Various contact arrangements
  • High switching current (up to 3 A, 110V AC)
  • Non-contact actuation
  • Ex Range version available
  • Two sensing faces IP67 (NEMA 6P) Rating
  • High switching current (up to 2 A, 250V AC)
  • High switching current (2 A, 250V AC)
  • Wide temperature range of -25...125 °C (-13...257 °F)
  • Slim housings
  • Metal housings (IP68)
  • Terminal connections

Specifications

Product Type

  • Product Family: Ferrogard
  • Type: FRS 5
  • Housing: Plastic Rectangular Terminal Chamber Switch and Actuator
  • Type: None
  • Safety Contacts: 1 N.C.
  • Auxiliary Contacts: NA
  • Switching Capacity: 250V AC, 2 A max.
  • Connection: Terminal Connector

Overview

UPC 61132019884
GTiN 00611320198843
Color Red
Type Non-Contact, Type FRS 5
Material ABS Housing
Applications For the Isolation of Control Power to a Machine Primary Control Element
Connection Type Terminal Connector
Contact Type Reed
Temperature Rating -10 to 65 C
Family Brand Name Allen Bradley
Enclosure Type IP65, NEMA 6P
TC Connection Terminals
Actuator Standard Actuator
Contact Configuration 1 N.C. Safety
Contact Rating 2 A at 250 VAC
Sub Brand Ferrogard, Guardmaster
Voltage null
Standard KC
