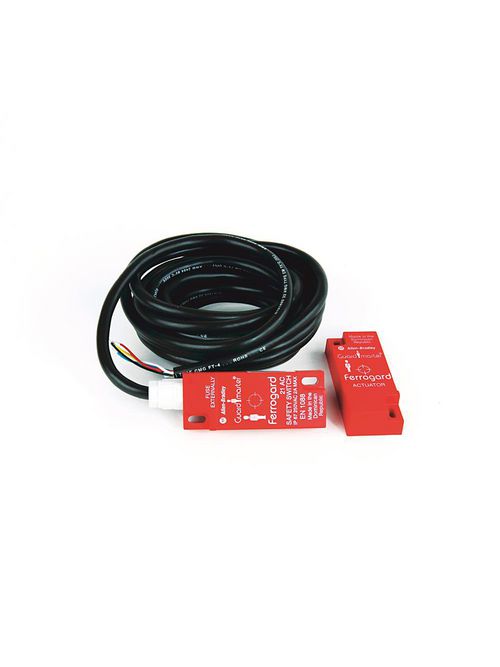

Allen-Bradley 440N-G02061 Guardmaster Non-Contact Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$373.13/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SFC
Mfg Catalog # 440N-G02061
North Coast Part # 17747

Features

  • High switching current (2 A, 250V AC; 1 A, 24V DC)
  • Various contact arrangements
  • High tolerance to misalignment
  • Two sensing faces IP67 (NEMA 6P) Rating
  • Ex Range version available
  • High switching current (2 A, 250V AC; 1 A, 24V DC)
  • Plastic rectangular housing (IP67)
  • Terminal connections
  • High switching current (2 A, 250V AC)
  • High switching current (up to 2 A, 250V AC)
  • Non-contact actuation
  • Stainless steel housing
  • Wide temperature range of -25...125 °C (-13...257 °F)
  • High switching current (up to 3 A, 110V AC)
  • Metal housings (IP68)
  • Slim housings

Specifications

Product Type

  • Product Family: Ferrogard
  • Type: FRS 21
  • Housing: Plastic IP67 (NEMA 6P) Rectangular Switch and Actuator
  • Type: None
  • Safety Contacts: 2 N.C.
  • Auxiliary Contacts: 1 N.O.
  • Switching Capacity: 250V AC, 2 A max.
  • Connection: 4 M Cable

Categories

Overview

UPC 61132019903
Item Long Description Guardmaster 440N Non Contact Switch
GTiN 00611320199031
Type Non-Contact, Type FRS 21
Material ABS Plastic
Connection Type 4 m PVC Cable
Contact Type Reed
Family Brand Name Allen Bradley
TC Connection PVC Cable 4M
Actuator Standard Actuator
Contact Configuration 2 N.C. Safety, 1 N.O Aux
Sub Brand Ferrogard, Guardmaster
Color Red
Applications For Isolation of Control Power to a Machine Primary Control Element
Temperature Rating -10 to 65 C
Blade Dimensions 76 mm L x 30 mm W x 15 mm D
Contact Rating 2 A at 250 VAC
Standard CUL,KC,UL
