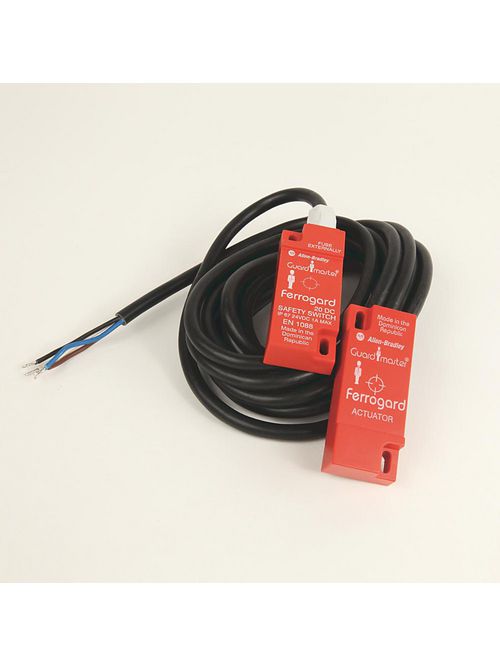

A-B 440N-G02083 Guardmaster 440N No
Product image thumbnail 0
Product image thumbnail 1
$381.12/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SFC
Mfg Catalog # 440N-G02083
North Coast Part # 17876

Features

  • Wide temperature range of -25...125 °C (-13...257 °F)
  • High switching current (2 A, 250V AC)
  • Slim housings
  • High tolerance to misalignment
  • Metal housings (IP68)
  • High switching current (2 A, 250V AC; 1 A, 24V DC)
  • Stainless steel housing
  • Two sensing faces IP67 (NEMA 6P) Rating
  • High switching current (up to 2 A, 250V AC)
  • Plastic rectangular housing (IP67)
  • Ex Range version available
  • High switching current (up to 3 A, 110V AC)
  • High switching current (2 A, 250V AC; 1 A, 24V DC)
  • Non-contact actuation
  • Various contact arrangements
  • Terminal connections

Specifications

Product Type

  • Product Family: Ferrogard
  • Type: FRS 21
  • Housing: Plastic IP67 (NEMA 6P) Rectangular Switch and Actuator
  • Type: None
  • Safety Contacts: 2 N.C.
  • Auxiliary Contacts: 1 N.O.
  • Switching Capacity: 24V DC, 1 A max.
  • Connection: 6 M Cable

Overview

UPC 61132019906
GTiN 00611320199062
Type Non-Contact
Material Plastic
Terminal Type Cable Preassembled
Applications For Safety Function
Connection Type 6 M Cable
Contact Type Reed
Family Brand Name Allen Bradley
Enclosure Type IP67
TC Connection PVC Cable 6M
Actuator Standard Actuator
Contact Configuration 2 N.C. Safety, 1 N.O Aux
Blade Dimensions 76 mm L x 30 mm W x 15 mm H
Contact Rating 1 A at 24 VDC
Sub Brand Guardmaster
Standard CCC,CE,CUL,KC,UL
