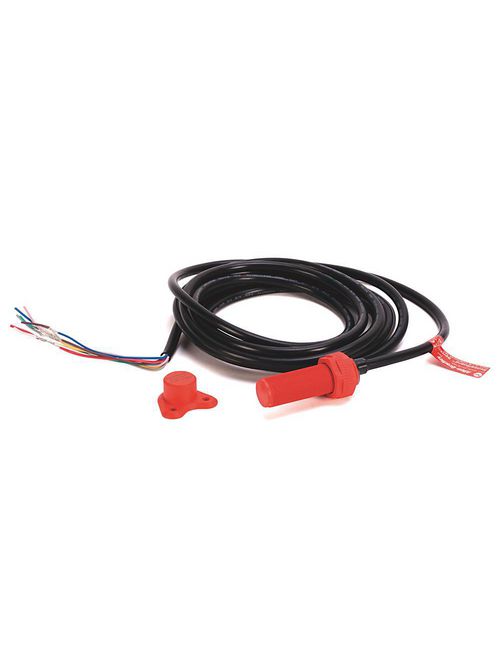

Allen-Bradley 440N-Z21S16H 24 VDC 200 mA Standard Non-Contact Safety Switch
Product image thumbnail 0
Product image thumbnail 1
$140.00/ea
In Stock | 2 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SFC
Mfg Catalog # 440N-Z21S16H
North Coast Part # 330354

Features

  • Provides switches that can be connected in series with other devices
  • Provides IP69K washdown rating

Specifications

  • Assured Sensing Distance (Make): 15 mm (0.59 in)
  • Actuator Code Type: Standard Code

Product Type

  • Product Family: SensaGuard
  • Housing Style: 18 mm Cylindrical Barrel
  • Type: 18 mm Plastic Barrel with 18 mm Plastic Standard Code Actuator
  • Safety Outputs: 2 x PNP, 0.2A, max: Status: ON (+24V DC)
  • Auxiliary Outputs: 1 x PNP, 0.2A, max Auxiliary Output
  • LED Indication for Door Status and Troubleshooting: Yes
  • Connection: 6 inch Pigtail with 8-Pin Micro (M12) Connector

Accessories

  • Cordsets: 889 DC Micro cable

Accessories

  • 889D-F8AB-5

Overview

UPC 66207462035
GTiN 00662074620357
Type 440N Non-Contact Switch
Material Plastic 18mm Barrel
Applications For Safety Functions
Connection Type 6 Inch Pigtail With 8-Pin Micro (M12) Connector
Family Brand Name Allen Bradley
TC Connection 8-pin QD
Contact Configuration 2 N.C. Safety, 1 N.O Aux
Blade Dimensions 67 mm L
Sub Brand Guardmaster
Voltage 20.4-26.4 VDC
Standard CCC,CE,CUL,RCM,UL
Contact Type Solid State Contacts
