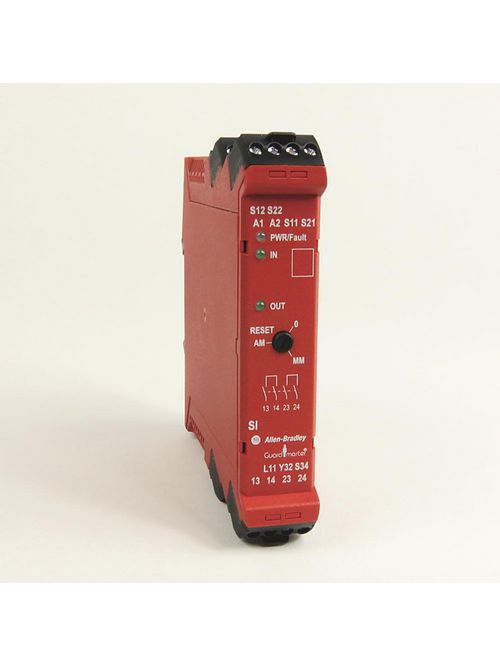

Allen-Bradley 440R-S12R2 Single Input Guardmaster Safety Relay
$240.00/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SFC
Mfg Catalog # 440R-S12R2
North Coast Part # 820247

Features

  • Includes single wire safety relay connection which allows for ease of installation and system flexibility
  • Offers a broad range of safety functions
  • Terminals are grouped together by power inputs and outputs for clear connection
  • Provides consistent terminal layouts and configuration allow simplified installation
  • Offers compact solution which saves energy and space on DIN rail
  • Provides versatility through simple logic, reset and timing configurations
  • Includes the Guardmaster Dual GuardLink safety relay, which provides visibility of system status down to the individual guard doors and e-stops when used with GuardLink-enabled smart safety devices

Specifications

Safety Relay Data

  • Inputs: 1 Dual Channel Universal Input
  • Single Wire Safe Input: N/A
  • Logic Configuration: None
  • Immediate Safety Outputs: 2 N.O.
  • Immediate Auxiliary Outputs: 1 N.C. Solid State
  • Delayed Safety Outputs: N/A
  • Single Wire Safe Output: 1 SWS Output
  • Power Supply: 24V DC
  • Removable Terminals: Removable
  • Reset: Configured Automatic/Manual or Manual Monitored Reset

Safety Relay Information

  • Relay Model Selected: Guardmaster Single Input Safety Relay (SI)

Overview

UPC 88563018167
GTiN 00885630181677
Type Single Input, Basic Device, 2-Channel
Applications For Monitoring of Emergency-Stop Circuits, Monitoring of Proximity Switches
Mounting Type Rail
Family Brand Name Allen Bradley
Output 2 Normally Open
Power Supply 24V DC
Blade Dimensions 22.5 mm W x 113.6 mm D x 119.4 mm H
Enclosure 22mm
Sub Brand Guardmaster
Voltage 24 VAC
Standard CCC,KC
