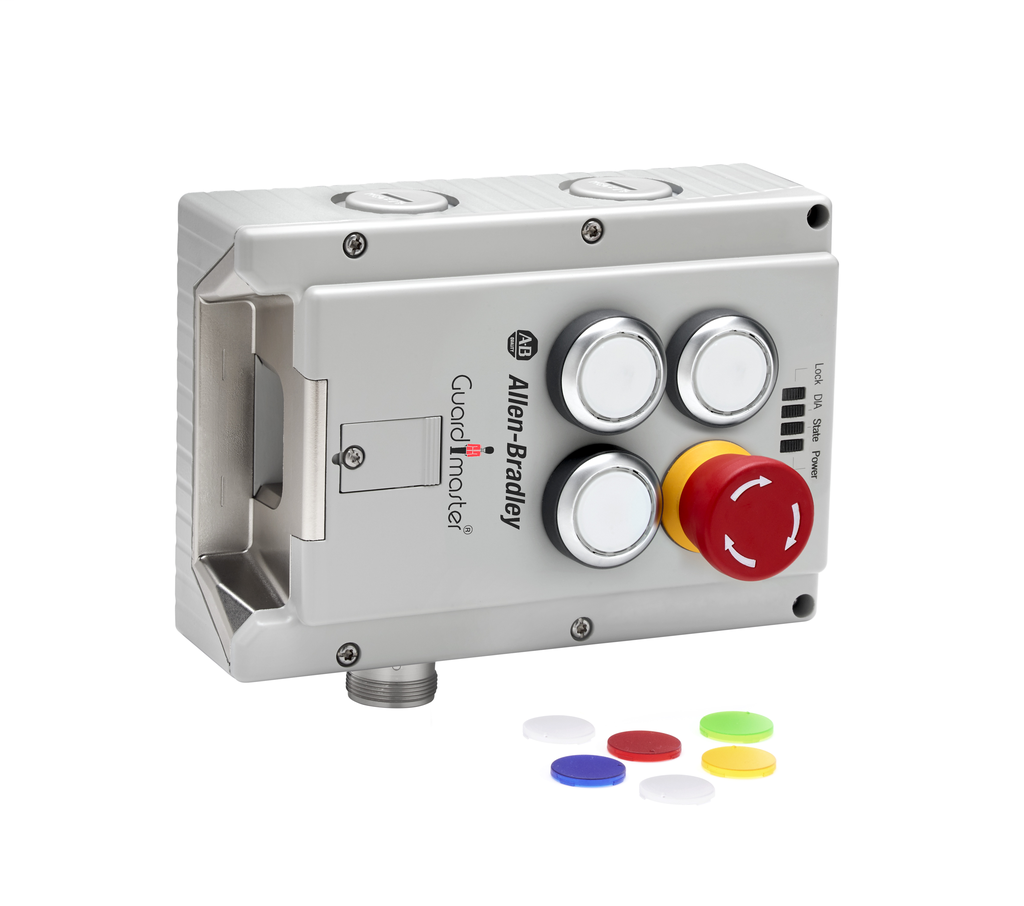

A-B 442G-MABR-ULM-C04 Lock Module P
Product image thumbnail 0
Product image thumbnail 1
$1,090.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SFC
Mfg Catalog # 442G-MABR-ULM-C04
North Coast Part # 1437984

Features

  • Offers the ability to be wired in a series and maintain a PLe Cat 4 rating for interlocking, guard lock monitoring and control of guard locking
  • Includes a high coded RFID bolt actuator to achieve the highest level of tamper resistance in accordance with ISO 14119
  • Includes a CIP Safety over EtherNet/IP version which enables easy integration in a networked automation control system using Studio 5000 Logix Designer® environment

Specifications

  • Type: Lock Modules
  • Product Family: Standard
  • Handle Orientation: Left
  • Lock Type: Power to Release (Power to Unlock)
  • Coding Type: High Level (Unique) Coded
  • Connection Type: 19-Pin M23 Style Connector
  • Control Functions: E-Stop and Three Push Buttons

Spares

  • Lock Modules: Lock Module, 442G Access Box, Power to Release, Unique Code, M23 Connector, Left-hand Guard, E-stop, 3 Push Buttons

Categories

Overview

UPC 88717293380
Item Long Description Lock Module PTR M23 Left
GTiN 00887172933806
Type Left-Hinged Door, Power-to-Release
Connection Type M23 19-Pin Connector
Family Brand Name Allen Bradley
TC Connection M23 19-pin Connector
Contact Configuration 2 x PNP, 200mA max.
Sub Brand Guardmaster
Voltage 24 Volt
Material Glass Fibre Reinforced Plastic
Standard C-TICK,CCC,CE,CUL,KC,RCM,UL
Wattage 250 mW
Enclosure Type IP65
Blade Dimensions 285.3 mm L x 114 mm W x 174 mm D
Contact Rating 200 mA
Used With Guardmaster 442G Multifunctional Access Box
