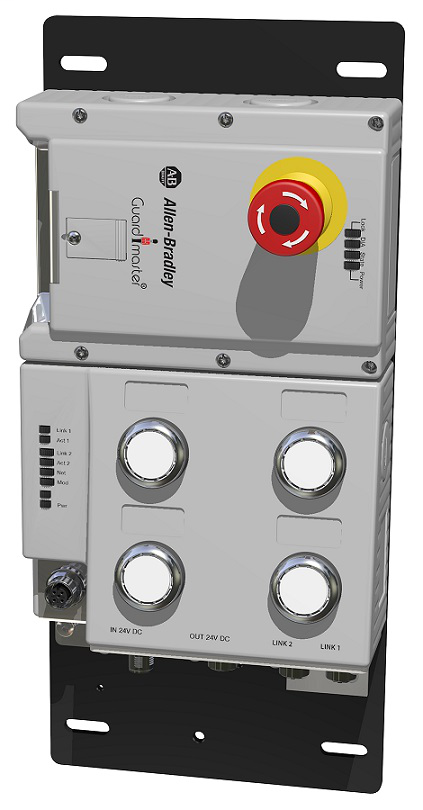

Allen-Bradley 442G-MABRB-UL-E0JP4679 PTR Left
$2,150.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 442G-MABRB-UL-E0JP4679
North Coast Part # 1761007

Features

  • Includes a high coded RFID bolt actuator to achieve the highest level of tamper resistance in accordance with ISO 14119
  • Includes a CIP Safety over EtherNet/IP version which enables easy integration in a networked automation control system using Studio 5000 Logix Designer® environment
  • Offers the ability to be wired in a series and maintain a PLe Cat 4 rating for interlocking, guard lock monitoring and control of guard locking

Specifications

  • Type: Lock Modules
  • Product Family: EtherNet/IP
  • Handle Orientation: Left
  • Lock Type: Power to Release (Power to Unlock)
  • Coding Type: High Level (Unique) Coded
  • Connection Type: EtherNet/IP (2 x M12, A-coded)
  • Control Functions: E-Stop, Four Push Buttons, Enabling Switch Connector

Spares

  • Lock Modules: Lock Module, 442G Access Box, Power to Release, Unique Code, EtherNet/IP (2 x M12, D-coded), Left-hand Guard, E-stop, Four Push Buttons, and Connector for Enabling Switch

Categories

Overview

UPC 88717299690
GTiN 00887172996900
Type Left-Hand Guard Door, Power to Release
Connection Type (2) M12 Cable
Family Brand Name Allen Bradley
TC Connection M12, D-coded
Contact Configuration CIP Safety over EtherNet/IP
Sub Brand Guardmaster
Material Glass Fiber Reinforced Plastic
Wire Size 26 AWG
Wattage 250 mW
Temperature Rating -20 to 55 C
Blade Dimensions 285.3 mm L x 114 mm W x 174 mm D
Used With Guardmaster 442G Multifunctional Access Box
Voltage 24 Volt
Standard CCC,CE,CUL,KC,RCM,UL
