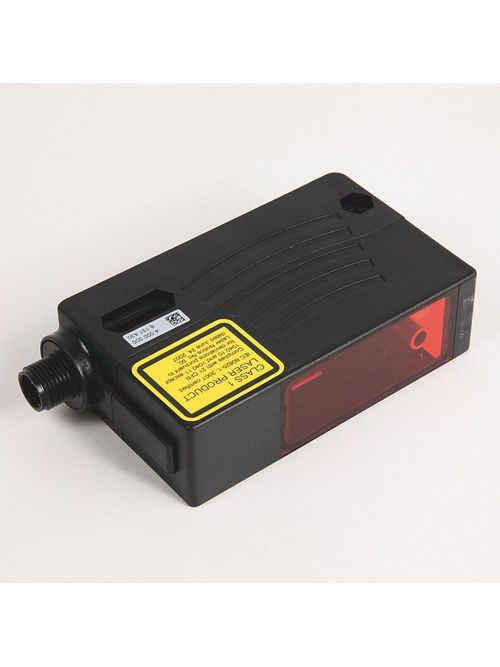

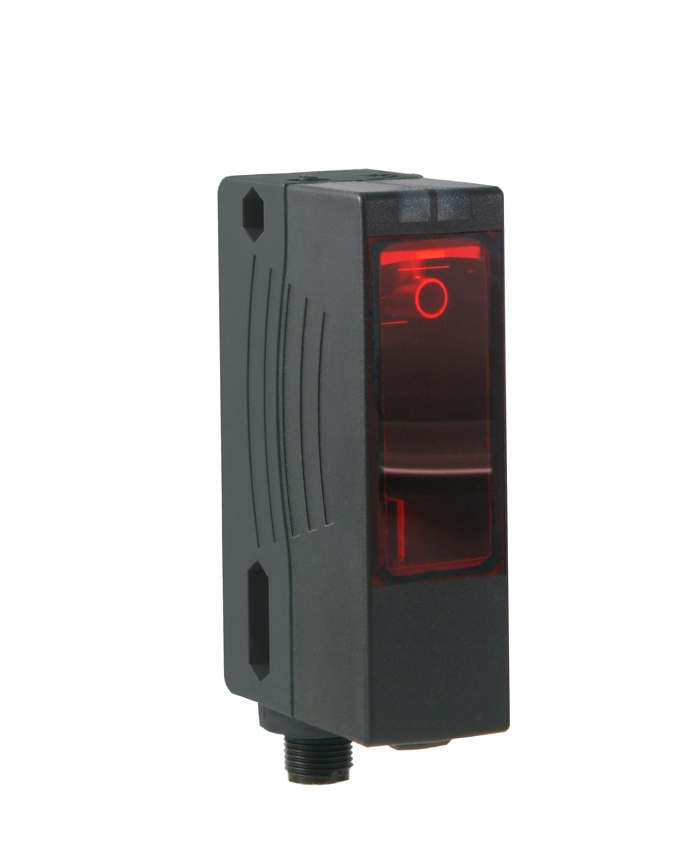

Allen Bradley 45LMS-U8LGC3-D4 10 to 30 VDC 70 mA NPN/PNP Dark/Light Standard Diffuse Laser Measurement Sensor
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 45LMS-U8LGC3-D4
North Coast Part # 828168


  • Provides fast response time of 10ms
  • Includes one discrete output (1 x NPN/PNP) and one analog output (1 x 4...20 mA)
  • Offers retroflective model range: 50m
  • Accurate to ± 24mm (± 0.98 in.)
  • IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device specific parameters
  • Incorporates embedded IO-Link communication protocol to help minimize downtime and increase productivity


  • Accessories: Mounting Bracket

Proximity Sensor Data

  • BulletinNo: 45LMS Laser Measurement Sensor
  • Sensing Mode: Retroreflective
  • Sensing Range: 0.2...50 m (0.66...164.04 ft)
  • Light Source: Class I laser, visible red 660 nm
  • Operating Voltage: 10...30V DC (18...30V DC when operating in IO-Link mode)
  • Output Type: 1 Discrete NPN/PNP output & 1 analog output 4...20mA; IO-Link(V1.0)
  • IO-Link Enabled: Yes
  • Response Time: 10ms
  • Operating Temperature: -30...50C (-22...122F)
  • Operating Environment: IP65
  • Termination Type: Micro QD (DC)

Accessory Items

  • Connection Media: DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m


  • 889D-F4AC-5


UPC 88563024283
GTiN 00885630242835
Operating Temperature -22 To 122 F
Type Standard, Laser Measurement
Material Plastic
Circuit Type PNP/NPN
Applications 45LMS Laser Sensor
Connection Type M12 Connector
Family Brand Name Allen Bradley
Termination Type Micro QD (DC)
Output 100 mA
Response Time 10m s
Blade Dimensions 54.6 mm L x 25.8 mm W x 88 mm H
Sensing Range 0.66-164.04 ft
Sub Brand Photoswitch
Voltage 10-30 Volt
Standard CCC,KC
