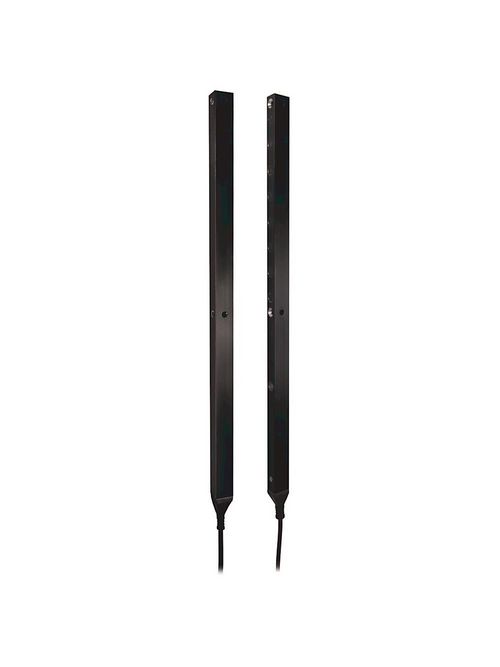

Allen Bradley 45MLA-AT1200P10 47.2 Inch 120-Beam Measuring Light Array Sensor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,154.60/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 45MLA-AT1200P10
North Coast Part # 819579

Features

  • Slim housing profile of 15 x 20 mm (0.6 x 0.8 in.)
  • Detects targets with gaps or spaces
  • Detects objects regardless of position in sensing field

Specifications

Assembly

  • Please Note: The 45MLA is a "Three Box System"

Array Selection

  • Please Note: Arrays ship as Transmitted Beam Pairs
  • Array Type: Standard
  • Sensing Height: 1200 mm (47.2 in)
  • Beam Spacing: 10 mm (0.39 in)
  • Number of Beams: 120

Controller Selection

  • Please Note: An external controller is required

Patchcord Selection

  • Please Note: Quantity of 2 Patchcords Required

Categories

Overview

UPC 61259871542
Item Long Description Measuring Light Array
GTiN 00612598715428
Type Measuring Light Array, Standard
Family Brand Name Allen Bradley
Sub Brand Photoswitch
Material Aluminum Housing, Polycarbonate Lens
Connection Type 8-Pin DC Micro (M12) Female QD on 500 mm Cable Pigtail
Temperature Rating 0 - 55 C
Light Source 940 nm
Blade Dimensions 1222 mm H
Environmental Conditions 15 - 95% Relative Humidity, -20 to 70 C Storage Temperature
Voltage 10-30 Volt
Standard CCC,KC
