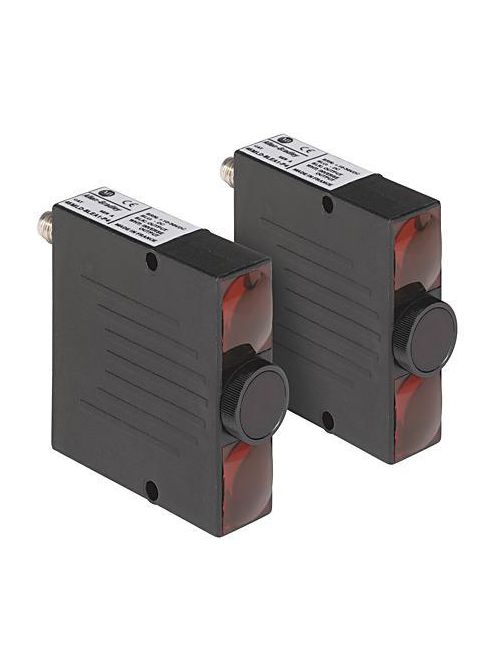

Allen-Bradley 45MLD-8LEA1-P4 Laser Bgs Sensor Laser Diffuse Sensor
Product image thumbnail 0
Product image thumbnail 1
$532.25/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-SEN
Mfg Catalog # 45MLD-8LEA1-P4
North Coast Part # 65208

Features

  • NPN/PNP output
  • Fast 200 µs response time for high-speed sensing or counting
  • Timer option: 40 ms off delay (pulse stretcher, activated via wiring scheme)
  • Adjustable focal length from 50...300 mm

Specifications

  • Sensing Beam: Laser
  • Voltage Rating: DC - LO or DO selectable
  • Output: Sink (NPN) / Source (PNP) Output Selectable
  • Sensing Range: 300mm (11.8in)
  • Connection: 4-pin Pico QD

Photoelectric Sensor Data

  • Light Source: Laser
  • Operating Voltage/Mode: DC - LO or DO selectable
  • Output Type: Sink (NPN) / Source (PNP) Output Selectable
  • Maximum Sensing Distance: 300mm (11.8in)
  • Connection Type: 4-pin Pico QD

Accessory Items

  • Connection Media: DC Pico(M8) ,Female ,Straight ,4-pin PVC, Yellow, Unshielded ,5 m

Accessories

  • 889P-F4AB-5

Overview

UPC 66207301956
GTiN 00662073019565
Type Laser Diffuse
Material Plastic
Circuit Type PNP/NPN
Connection Type M8 Connector
Family Brand Name Allen Bradley
TC Connection 4-pin Pico Threaded,4 Pin Pico M8 Quick Disconnect
Output 100 mA
Blade Dimensions 18 mm L x 60 mm W x 60 mm H
Enclosure Plastic
Voltage 10-30 VDC
Mounting Type Side Through Hole,Side Through Hole
Standard CCC,CE,CUL,KC,UL
Sensor Type Laser
