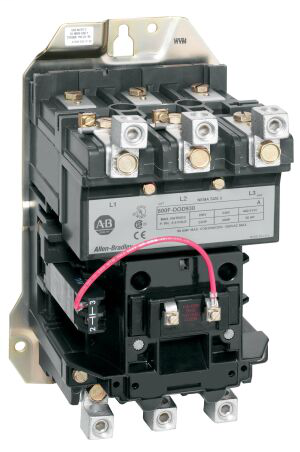

A-B 500F-BOH930 NEMA Size 1, 27A Co
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$450.87/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-MCP
Mfg Catalog # 500F-BOH930
North Coast Part # 763859

Features

  • Remote operation by pilot devices
  • 120V AC coil and one N.O. auxiliary contact are included as standard
  • Can be field wired for single- or three-phase applications
  • Feed-through wiring for motor loads

Specifications

  • Max. Hp (230V) 1-Phase Motor Voltage: 7.5
  • Max. Hp (200V) 3-Phase Motor Voltage: 7.5
  • Max. Hp (230V) 3-Phase Motor Voltage: 7.5
  • Max. Hp, 50 Hz (380...415V) 3-Phase Motor Voltage: 10
  • Max. Hp (460...575V) 3-Phase Motor Voltage: 10
  • Maximum Load Current: 27
  • Size: NEMA 1

Product

  • Product Type: Open Style

Assembly

  • Assembly?: Modular Kit

Contactor Data

  • Continuous Ampere Rating (A): 27
  • NEMA Size: NEMA 1
  • Enclosure Type: Open
  • Coil Voltage: 208V 60Hz
  • Pole Configuration: 3 Power Poles
  • With One Auxiliary Contact: Yes

Categories

Overview

UPC 78118016832
Item Long Description NEMA Size 1, 27A Contactor Feed Through
GTiN 00781180168321
Size NEMA Size 1, 27A
Type Feed-Through
Coil Voltage 200 - 208 VAC at 60 Hz
Family Brand Name Allen Bradley
NEMA 1
Enclosure Type Open
TC Connection 3 Power Poles
Number of Poles 3 Pole
Conductor Size 14-8 AWG
Contact Configuration 1 NO Auxiliary
Blade Dimensions 3.56 in W x 4.44 in D x 7.61 in H
Standard CE,CSA,CUL,MARINE,UL
Connection Type 3 Power Poles
