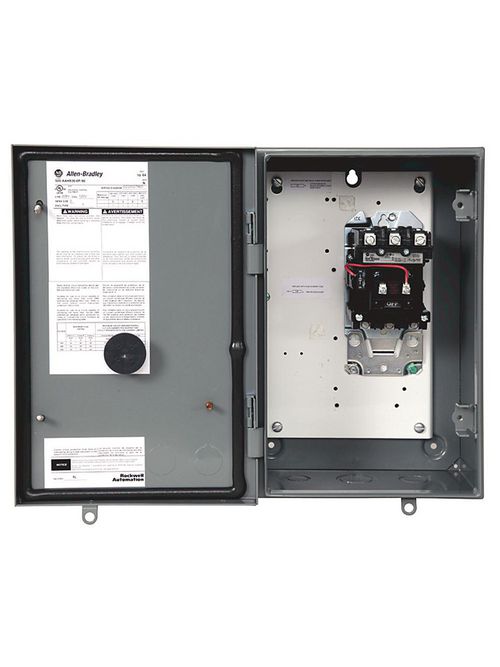

A-B 500L-TAD930 SZ 00 Lighting CNTC
Product image thumbnail 0
Product image thumbnail 1
$412.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 500L-TAD930
North Coast Part # 672060

Features

  • For non-motor loads, lighting, heating
  • Enclosure ratings: NEMA Type 1, 3R/12, 4/4X (stainless steel)
  • Special purpose enclosures Type 4X Glass Reinforced Polyester Bolted — 7 and 9, and 3R, 7 and 9
  • NEMA sizes to 2250 A
  • Top wiring

Specifications

  • Current Product Selection Availability (may change based on options selected below): Regional Configuration Center: 48 hr ship.
  • Note: Enclosed Contactors are Top Wiring provisioned as standard

Assembly

  • Assembly?: User Assembled QC

System Voltage Data

  • Phases: Three Phase

Motor Data

  • Maximum Ampere Rating: 5A Tungsten Lamp, 10A Non-Motor, Resistive Heating, Ballast and Discharge Lighting Loads

Contactor Data

  • Enclosure Type: Type 1 General Purpose Enclosure
  • Coil Voltage: 115-120V 60Hz
  • Pole Configuration: 3 Power Poles
  • With One Auxiliary Contact: Yes

Important Information

  • Enclosure Size [length x width x depth]: 10 x 7 x 5 in.

Overview

UPC 88563014475
GTiN 00885630144757
Size Size 00
Type Top Wiring, Electrically Held
Coil Voltage 115 - 120 VAC at 60 Hz
Family Brand Name Allen Bradley
NEMA 1
Number of Phases 3 Phase
Number of Poles 3 Pole
Enclosure NEMA 1 General Purpose
Conductor Size 16-10 AWG
Mounting Type Horizontal
Blade Dimensions 6.84 in W x 5.52 in D x 9.76 in H
Standard UL
