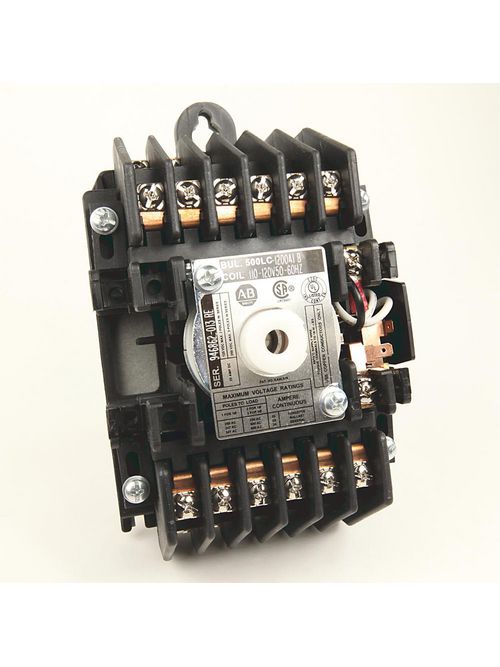

Allen-Bradley 500LC-1200A1 AC Mechanically Held Lighting Contactor

Features

• Patented single-solenoid, bi-directional operating mechanism
• Rated for metal halide, mercury vapor, quartz halogen, tungsten, and fluorescent lighting loads
• May be applied to UL 67 Listed panelboards
• Mechanically-held, electrically operated with contacts power-driven to open and closed positions
• Interrupts 300% rated current at 0.4...0.5 power factor
• Rated 20 A…600V AC (30 A general purpose)
• Shallow construction accommodates panelboard or separate mounting

Certifications

• UL Listed — File No. E14843; Guide No. NRNT
• CSA Certified — File No. LR1234

Standards Compliance

• CSA C22.2, No. 14
• UL 508A

Accessories for 500LC-1200A1

• 500LC-47CM24: Solid-State control module for 2-wire control 24V AC/DC
• 500LC-49SS120: Solid-State control module for stop/start control (Form 3) 120V AC
• 500LC-CCKA2: Coil Conversion Kit 208...240V AC
• 500LC-49SS240: Solid-State control module for stop/start control (Form 3) 240/277V AC
• 500LC-48CM12: Solid-State control module for 3-wire control 12V AC/DC
• 500LC-47CM120: Solid-State control module for 2-wire control 120V AC
• 500LC-48CM24: Solid-State control module for 3-wire control 24V AC/DC
• 500LC-48CM240: Solid-State control module for 3-wire control 240/277V AC
• 500LC-E1SM: Type 1 Surface Mount Enclosure
• 500LC-2PCK: Pole Conversion Kit 2-Pole N.O.
• 500LC-48CM120: Solid-State control module for 3-wire control 120V AC
• 500LC-47CM240: Solid-State control module for 2-wire control 240/277V AC
• 500LC-CCKA3: Coil Conversion Kit 265...277V AC
• 500LC-4PCK: Pole Conversion Kit 4-Pole N.O.
• 500LC-E12SM: Type 12 Surface Mount Enclosure
• 500LC-49SS24: Solid-State control module for stop/start control (Form 3) 24V AC/DC
• 500LC-E4SM: Type 4/4X Surface Stainless Steel Mount Enclosure
• 500LC-6PCK: Pole Conversion Kit 6-Pole N.O.
• 500LC-E3RSM: Type 3R Surface Mount Enclosure
• 500LC-CCKA1: Coil Conversion Kit 110...120V AC
• 500LC-49SS12: Solid-State control module for stop/start control (Form 3) 12V AC/DC
• 500LC-47CM12: Solid-State control module for 2-wire control 12V AC/DC
• 500LC-141C: One Form C (one-pole, double-throw)
• 500LC-142C: Two Form C (one-pole, double-throw)

Enclosure Type

• Enclosure: Open

N.C. Contact Pole Configuration

• Number of Contacts for Normally Closed: 0 N.C. Contacts

Options

• Control Type: No Control Module Installed

Coil

• Coil Voltage: 110...120V AC 50/60 Hz

N.O. Contact Pole Configuration

• Number of Contacts for Normally Open: 12 N.O. Contacts
