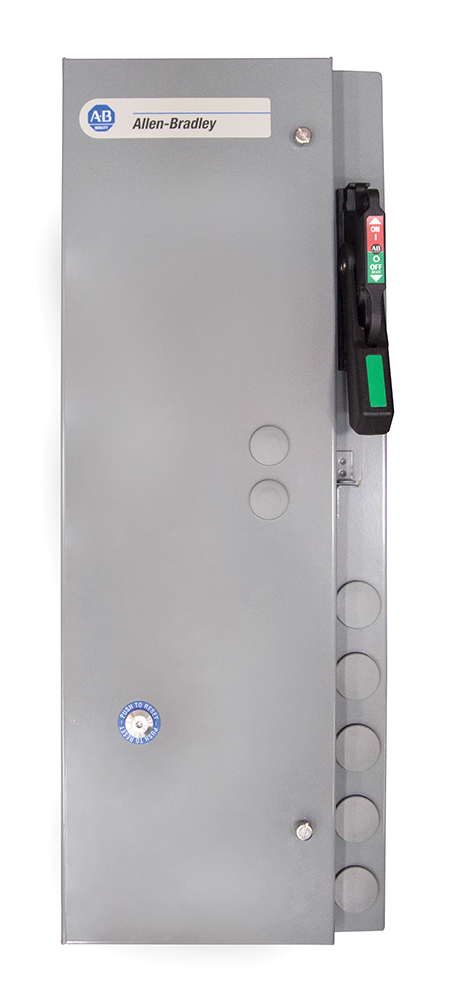

A-B 502-AFCD-24R NEMA Size 0 Combin
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 502-AFCD-24R
North Coast Part # 602222


  • Circuit breaker thermal magnetic (inverse time)
  • Offers factory installed modifications
  • Fusible or non-fusible disconnect switch
  • Offers field installed accessories
  • Includes painted metal enclosures: Type 1, Type 3R/4/12
  • Includes stainless steel enclosures: Type 4/4X
  • Includes non-metallic enclosures: Type 4/4X
  • Includes service entrance rating


  • Size: NEMA 0
  • Continuous Ampere Rating: 18 A

Motor Data

  • Line Voltage: 575V 60Hz

Starter Data

  • NEMA Size: NEMA 0
  • Enclosure: Type 3R/4/12 - Enclosure Code "F"
  • Control Voltage: 120V 60Hz

Disconnect Data

  • Disconnect Type: Fusible
  • Fuse Clips: 30A Class R

Important Information

  • Enclosure Size [length x width x depth]: 27 x 10 x 8 in.


UPC 78118056876
GTiN 00781180568763
Size Size 0
Type Combination Cntcr Discon
Control Voltage 120 V
Family Brand Name Allen Bradley
Disconnect Type Fusible
Enclosure NEMA 3R/4/12 Painted
Sub Brand NEMA
Fuse Type 30 A Class R
Amperage 18 Amp
