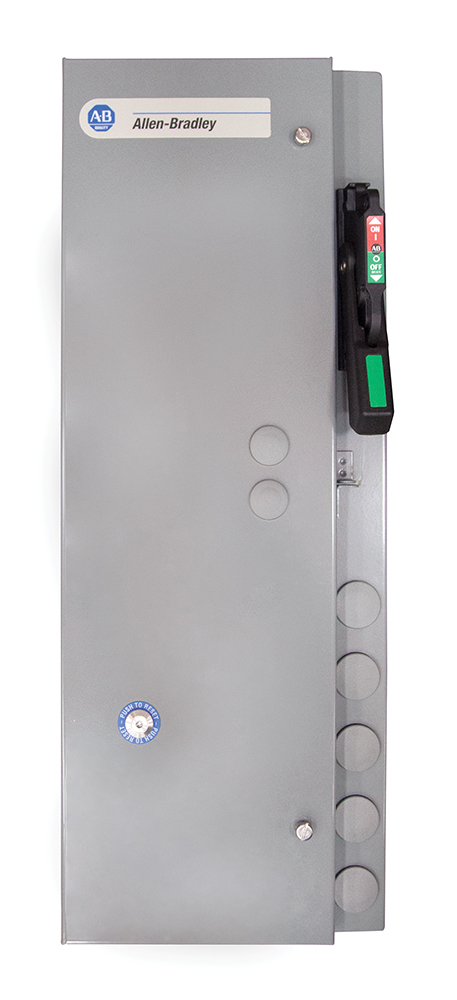

Allen-Bradley 502-BFB-6P-24R NEMA Size 1 Comb
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 502-BFB-6P-24R
North Coast Part # 663783


  • Fusible or non-fusible disconnect switch
  • Offers field installed accessories
  • Includes service entrance rating
  • Offers snap-together wiring which provides faster and easier wiring of components in the enclosure
  • Includes stainless steel enclosures: Type 4/4X
  • Circuit breaker thermal magnetic (inverse time)
  • Includes non-metallic enclosures: Type 4/4X
  • Offers factory installed modifications
  • Includes painted metal enclosures: Type 1, Type 3R/4/12


  • Size: NEMA 1
  • Continuous Ampere Rating: 27 A

Motor Data

  • Line Voltage: 460V 60Hz

Starter Data

  • NEMA Size: NEMA 1
  • Enclosure: Type 3R/4/12 - Enclosure Code "F"
  • Control Voltage: 120V 60Hz

Disconnect Data

  • Disconnect Type: Fusible
  • Fuse Clips: 30A Class R


  • Factory Installed Modifications: Transformer, w/2 Prim & 1 Sec Fuse

Important Information

  • Enclosure Size [length x width x depth]: 27 x 10 x 8 in.
  • Continuous VA (Transformer Rating): 80


UPC 66207468484
Item Long Description Combination Cntcr Discon,Size 1,120V 60 Hz,NEMA 3R/4/12 Painted,Disconnect Starter,Fusible,30 A Class R,No option,Transformer,440/480 VAC - 50/60Hz,No Fuse Cover,No Auxililiary Contacts,Standard Capacity,80. VA,Ungrounded Transformer
GTiN 00662074684847
Size Size 1
Type NEMA Combination Cntcr Discon
Control Voltage 120 V
Family Brand Name Allen Bradley
Disconnect Type Fusible
Enclosure NEMA 3R/4/12 Painted
Sub Brand NEMA
Standard CUL,UL
Fuse Type 30 A Class R
Amperage 27 Amp
