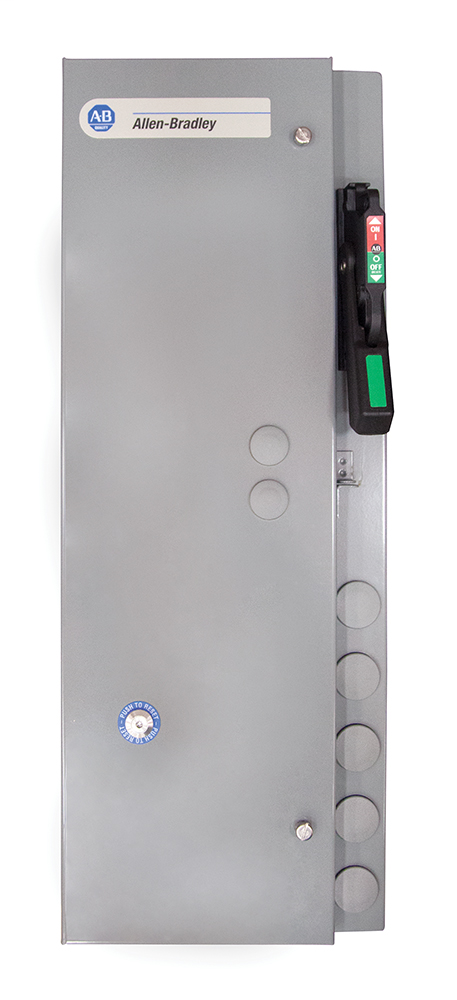

A-B 503-BABD-3-35T NEMA Size 1 Comb

Specifications

Motor Data

• Line Voltage: 460V 60Hz

• Size: NEMA 1
• Continuous Ampere Rating: 27 A

Starter Data

• NEMA Size: NEMA 1
• Enclosure: Type 1 - Enclosure Code "A"
• Control Voltage: 120V 60Hz

Circuit Breaker Data

• Horsepower Code: 1 HP (Motor Protection)
• Circuit Breaker Type: Inverse Time, Standard Interrupting Capacity

Options

• Factory Installed Modifications: HAND-OFF-AUTO Selector Switch

Important Information

• Enclosure Size [length x width x depth]: 27 x 10 x 8 in.

Features

• Offers field installed accessories
• Includes painted metal enclosures: Type 1, Type 3R/4/12
• Includes service entrance rating
• Includes stainless steel enclosures: Type 4/4X
• Includes non-metallic enclosures: Type 4/4X
• Offers factory installed modifications
• Fusible or non-fusible disconnect switch
• Circuit breaker thermal magnetic (inverse time)
