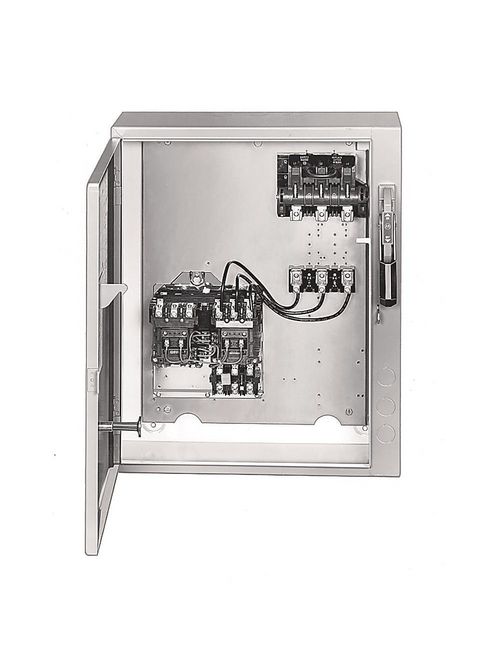

Allen Bradley 506-CACD-25R NEMA Size 2 Disconnect Type Reversing Combination Starter
Product image thumbnail 0
Product image thumbnail 1
$4,408.95/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CPB
Mfg Catalog # 506-CACD-25R
North Coast Part # 1160382

Specifications

Assembly

  • Factory or User Assembled?: Factory Assembled
  • Size: NEMA 2
  • Continuous Ampere Rating: 45 A

Motor Data

  • Line Voltage: 575V 60Hz

Starter Data

  • NEMA Size: NEMA 2
  • Enclosure: Type 1 - Enclosure Code "A"
  • Control Voltage: 120V 60Hz

Disconnect Data

  • Disconnect Type: Fusible
  • Fuse Clips: 60A Class R

Options

  • Overload Relay: Eutectic Alloy

Important Information

  • Enclosure Size [length x width x depth]: 30 x 20 x 9 in.

Overview

UPC 66246824421
GTiN 00662468244213
Size Size 2
Type Rvsg Combination Discon
Control Voltage 120 V
Fuse Type 60 A Class R
Family Brand Name Allen Bradley
NEMA 2
Enclosure Type NEMA 1 General Purpose
Disconnect Type Fusible
Amperage 45 Amp
Reset Type Eutectic Alloy
Sub Brand NEMA
