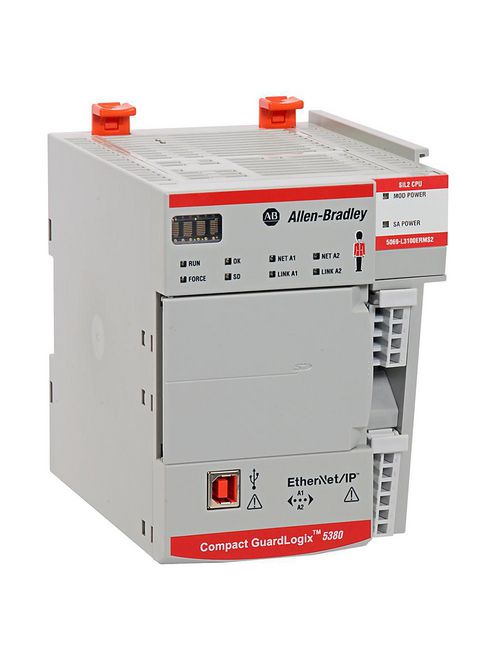

A-B 5069-L306ERMS2 Compact GuardLog
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,815.45/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CMX
Mfg Catalog # 5069-L306ERMS2
North Coast Part # 1605024

Features

  • Offer a 1 gigabit (Gb) embedded Ethernet port that enables high-speed communications, I/O, and motion control
  • Provide improved status indicators to monitor and troubleshoot systems
  • Support up to 31 Bulletin 5069 Compact I/O™ modules
  • Provide a local safety connectivity to the Compact GuardLogix 5380
  • Provide high-speed backplane communications for faster transfer rates
  • Offer controller functions optimized for maximum system performance
  • Use the slim 5069-AENTR for small space requirements
  • Provide separate system power for better isolation and built-in power input with field power to I/O modules
  • Provide faster safety reaction time
  • Ideal for small to mid-size applications that require low axis motion and I/O point counts
  • Enable high-speed I/O, motion control, and Device Level Ring/Linear Topologies
  • Offer Integrated Motion on EtherNet/IP up to 32 axes
  • Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
  • Offer enhanced security features which include digitally-signed controller firmware, controller-based change detection, and logging and role-based access control to routines and Add-On Instructions
  • Include dual configurable ports that supports Dual IP address
  • Rated up to SIL3/PLe
  • Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
  • Support up to 31 I/O modules
  • Support up to 31 I/O modules per controller or adapter
  • Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
  • Provide enhanced diagnostics and troubleshooting
  • Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
  • Provide enhanced diagnostics information
  • Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
  • Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP

Specifications

Product Selection

  • Category: Controllers

Controller

  • Controller Capacity: 0.6 MB
  • I/O Modules (max): 8
  • Ethernet/IP Nodes supported (max): 16
  • Integrated Motion: 2

Catalog Number

  • Catalog Number: Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 0.6MB Standard & 0.3MB Safety Memory, 16 nodes, 8 I/Os, 2 axis

Note

  • Note: The 5380 controllers did not come with the removable terminals. It is necessary to purchase the 5069-RTB64-SCREW or 5069-RTB64-SPRING terminal kits separately to use the 5380 controllers

Overview

GTiN 00889508434377
Width 3.86 in
Operating Temperature 140 degrees F
Type 8-Point, 16 Node, 2 Axis
Depth 5.39 in
Height 4.84 in
Family Brand Name Allen Bradley
Number of Channels 0
Power Supply MOD Power 1832V DC SA Power 032V DC 4763 Hz ATEX/IECEX
Memory 0.6 MB (Standard), 0.3 MB (Safety Memory)
Sub Brand CompactLogix
Product UPC 88950843437
Temperature Rating 0 - 60 C
Blade Dimensions 98.1 mm W x 136.81 mm D x 123 mm H
Mounting Type DIN-Rail
Standard CE,CUL,KC,MARINE,RCM,UL
Display Type 4 Digit LED Display & StatusLEDs
