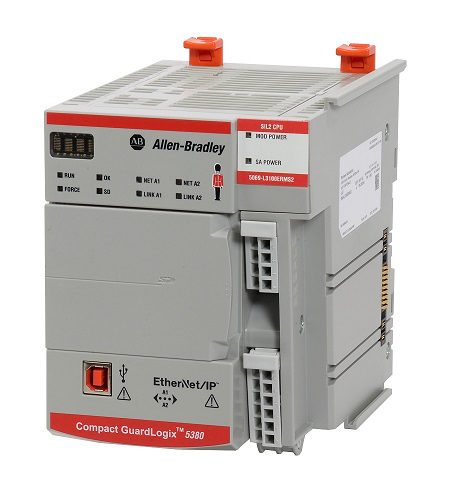

A-B 5069-L310ERS2 Compact GuardLogi

Features

• Provide high-speed backplane communications for faster transfer rates
• Ideal for small to mid-size applications that require low axis motion and I/O point counts
• Provide improved status indicators to monitor and troubleshoot systems
• Use the slim 5069-AENTR for small space requirements
• Include dual configurable ports that supports Dual IP address
• Provide enhanced diagnostics and troubleshooting
• Support up to 31 Bulletin 5069 Compact I/O™ modules
• Support up to 31 I/O modules
• Provide separate system power for better isolation and built-in power input with field power to I/O modules
• Provide faster safety reaction time
• Offer Integrated Motion on EtherNet/IP up to 32 axes
• Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
• Provide enhanced diagnostics information
• Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
• Enable high-speed I/O, motion control, and Device Level Ring/Linear Topologies
• Rated up to SIL3/PLe
• Provide a local safety connectivity to the Compact GuardLogix 5380
• Support up to 31 I/O modules per controller or adapter
• Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
• Offer enhanced security features which include digitally-signed controller firmware, controller-based change detection, and logging and role-based access control to routines and Add-On Instructions
• Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
• Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
• Offer controller functions optimized for maximum system performance
• Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
• Offer a 1 gigabit (Gb) embedded Ethernet port that enables high-speed communications, I/O, and motion control

Specifications

Product Selection

• Category: Controllers

Controller

• Controller Capacity: 1 MB
• I/O Modules (max): 8
• Ethernet/IP Nodes supported (max): 24
• Integrated Motion: None

Catalog Number

• Catalog Number: Controller, Compact GuardLogix 5380 Safety, SIL2/PLd, 1.0MB Standard & 0.5MB Safety Memory, 24 nodes, 8 I/Os

Note

• Note: The 5380 controllers did not come with the removable terminals. It is necessary to purchase the 5069-RTB64-SCREW or 5069-RTB64-SPRING terminal kits separately to use the 5380 controllers
