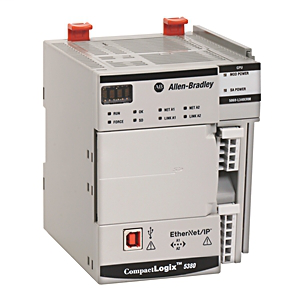

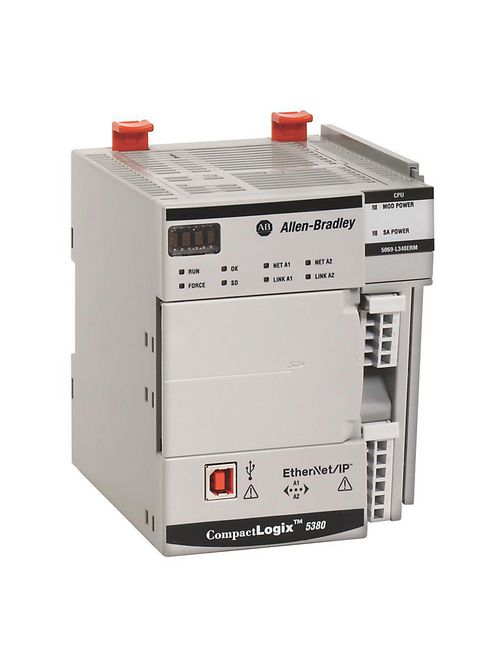

Allen Bradley 5069-L320ER 2 MB 1-Port USB 16-I/O 40-Node Controllogix PLC Controller
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 21 to 35 Days
Already a Customer? Log in to view your pricing
Manufacturer AB-CMX
Mfg Catalog # 5069-L320ER
North Coast Part # 1271268


  • Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
  • Use the slim 5069-AENTR for small space requirements
  • Provide improved status indicators to monitor and troubleshoot systems
  • Offer Integrated Motion on EtherNet/IP up to 32 axes
  • Provide high-speed backplane communications for faster transfer rates
  • Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
  • Provide faster safety reaction time
  • Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
  • Offer enhanced security features which include digitally-signed controller firmware, controller-based change detection, and logging and role-based access control to routines and Add-On Instructions
  • Rated up to SIL3/PLe
  • Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
  • Ideal for small to mid-size applications that require low axis motion and I/O point counts
  • Provide separate system power for better isolation and built-in power input with field power to I/O modules
  • Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
  • Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
  • Support up to 31 I/O modules per controller or adapter
  • Provide enhanced diagnostics and troubleshooting
  • Support up to 31 I/O modules
  • Offer controller functions optimized for maximum system performance
  • Support up to 31 Bulletin 5069 Compact I/O™ modules
  • Include dual configurable ports that supports Dual IP address
  • Provide enhanced diagnostics information
  • Enable high-speed I/O, motion control, and Device Level Ring/Linear Topologies
  • Provide a local safety connectivity to the Compact GuardLogix 5380
  • Offer a 1 gigabit (Gb) embedded Ethernet port that enables high-speed communications, I/O, and motion control


  • Note: The Controllers and 5069-AEN2TR require selection of Terminal Kits 5069-RTB64-SCREW or 5069-RTB64-SPRING. Please remember to update the quantity to match the number of Controller/Communication option selected.

Product Selection

  • Category: Controllers


  • Controller Capacity: 2 MB
  • I/O Modules (max): 16
  • Ethernet/IP Nodes supported (max): 40
  • Integrated Motion: None

Catalog Number

  • Catalog Number: Controller, CompactLogix 5380, 2 MB, 16 I/Os, 40 EtherNet/IP Devices


  • Note: The 5380 controllers did not come with the removable terminals. It is necessary to purchase the 5069-RTB64-SCREW or 5069-RTB64-SPRING terminal kits separately to use the 5380 controllers


UPC 88950807125
Item Long Description CompactLogix 2MB Enet Controller
GTiN 00889508071251
Width 3.86 in
Operating Temperature 140 degrees F
Type Controller
Depth 5.39 in
Height 4.84 in
Family Brand Name Allen Bradley
Number of Channels 0
Power Supply MOD Power 1832V DC SA Power 032V DC 0240V AC, 4763 Hz ATEX/IECEX, 125V AC max
Memory 2 MB
Sub Brand CompactLogix
Mounting Type DIN-Rail
Display Type 4 Digit LED Display & Status LEDs
