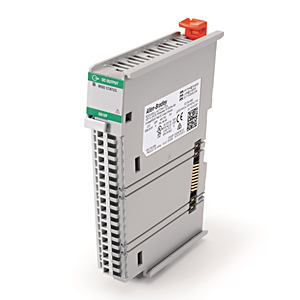

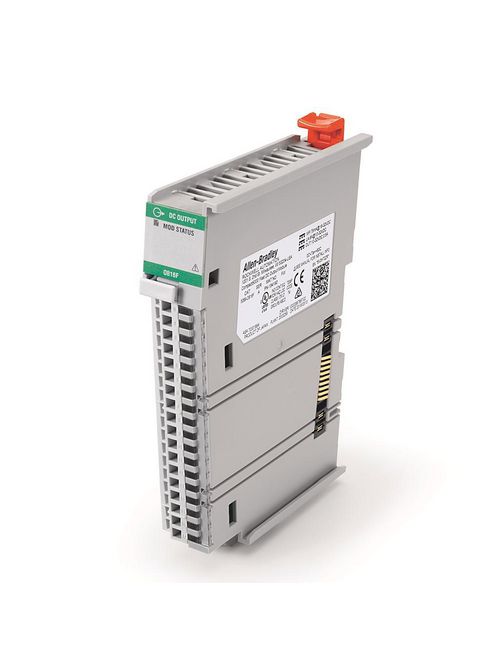

Allen Bradley 5069-OB16F Fast DC Output Module
$651.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 5069-OB16F
North Coast Part # 1347969

Features

  • Provide improved status indicators to monitor and troubleshoot systems
  • Provide separate system power for better isolation and built-in power input with field power to I/O modules
  • Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
  • Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
  • Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
  • Use the slim 5069-AENTR for small space requirements
  • Provide a local safety connectivity to the Compact GuardLogix 5380
  • Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
  • Rated up to SIL3/PLe
  • Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
  • Provide enhanced diagnostics information
  • Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
  • Support up to 31 I/O modules
  • Provide faster safety reaction time
  • Support up to 31 I/O modules per controller or adapter
  • Provide high-speed backplane communications for faster transfer rates

Specifications

Product Selection

  • Category: IO Modules
  • Note:: The selected IO Product needs the Terminal kits 5069-RTB18-SCREW or 5069-RTB18-SPRING. Terminal kits are pre-packed in a pack of 5pcs

I/O Modules

  • Category: Digital
  • Type: Output
  • Voltage: 12/24V DC
  • No of Inputs/Outputs: 16

Catalog Number

  • Catalog Number: 5069 Compact I/O 16 Channel Fast 24V DC Source Output Module

Note

  • Note: The selected IO Product needs the Terminal kits 5069-RTB18-SCREW or 5069-RTB18-SPRING. Terminal kits are pre-packed in a pack of 1pcs

Overview

UPC 88563053008
GTiN 00885630530086
Voltage 12/24 Volt
Type Output Module
Family Brand Name Allen Bradley
Number of Channels 16 Channel
Sub Brand CompactLogix
Temperature Rating 0 - 60 C
Power Consumption 3.25 W
Output 16
Blade Dimensions 22 mm W x 105 mm D x 138 mm H
Environmental Conditions -40 to 85 C Temperature, 5 - 95% Non-Condensing Relative Humidity, 4.6 g at 10 - 500 Hz Vibration, 30 g Shock
Used With CompactLogix/Compact GuardLogix 5069 Controllers
