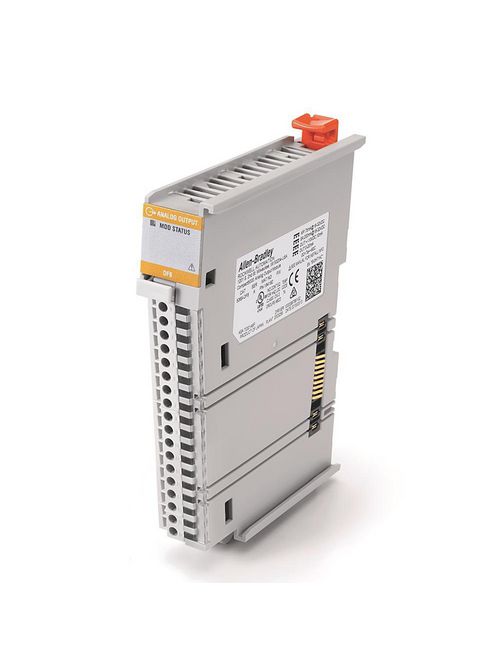

A-B 5069-OF8 Compact 5000 Analog Ou
Product image thumbnail 0
Product image thumbnail 1
$1,520.00/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer AB-CMX
Mfg Catalog # 5069-OF8
North Coast Part # 1276578

Features

  • Provide enhanced diagnostics information
  • Provide faster safety reaction time
  • Provide high-speed backplane communications for faster transfer rates
  • Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
  • Provide improved status indicators to monitor and troubleshoot systems
  • Provide separate system power for better isolation and built-in power input with field power to I/O modules
  • Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
  • Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
  • Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
  • Use the slim 5069-AENTR for small space requirements
  • Support up to 31 I/O modules per controller or adapter
  • Rated up to SIL3/PLe
  • Support up to 31 I/O modules
  • Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
  • Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
  • Provide a local safety connectivity to the Compact GuardLogix 5380

Specifications

  • Note: The selected IO Product needs the Terminal kits 5069-RTB18-SCREW or 5069-RTB18-SPRING. Terminal kits are pre-packed in a pack of 5pcs

Product Selection

  • Category: IO Modules

I/O Modules

  • Category: Analog
  • Type: Output
  • No of Inputs/Outputs: 8

Catalog Number

  • Catalog Number: 5069 Compact I/O 8 Channel Voltage/Current Analog Output Module

Note

  • Note: The selected IO Product needs the Terminal kits 5069-RTB18-SCREW or 5069-RTB18-SPRING. Terminal kits are pre-packed in a pack of 1pcs

Overview

UPC 88563053011
GTiN 00885630530116
Type Output Module
Applications For Safety Function
Mounting Type Panel/Rail
Family Brand Name Allen Bradley
Number of Channels 8 Channel
TC Connection Screw
Output 8 Analog
Blade Dimensions 22 mm W x 105 mm D x 138 mm H
Output Signal Analog
Sub Brand Compact 5000
Standard CCC,CE,CUL,KC,MARINE,RCM,UL
