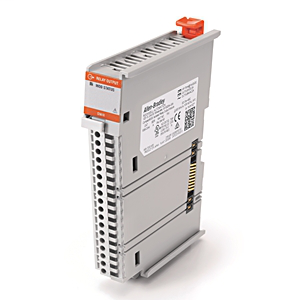

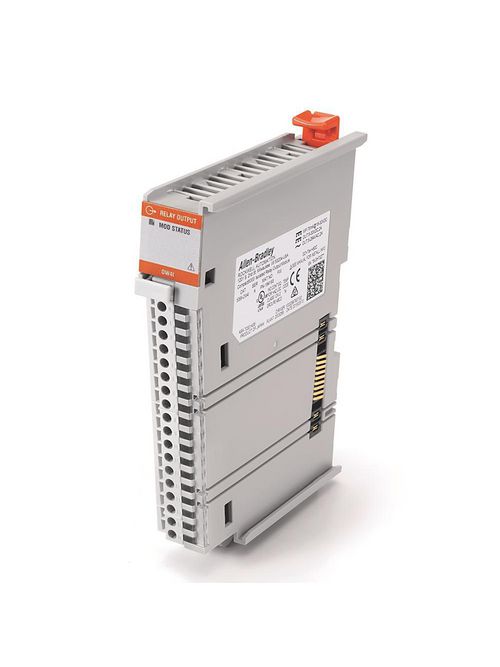

Allen-Bradley 5069-OW4I Compact 5000 Isolated

Specifications

Product Selection

• Category: IO Modules

• Note:: The selected IO Product needs the Terminal kits 5069-RTB18-SCREW or 5069-RTB18-SPRING. Terminal kits are pre-packed in a pack of 5pcs

I/O Modules

• Category: Relay
• Type: Output
• No of Inputs/Outputs: 4
• Contact Type: N.O

Catalog Number

• Catalog Number: 5069 Compact I/O 4 Channel Normally open individually isolated type Relay Output Module

Note

• Note: The selected IO Product needs the Terminal kits 5069-RTB18-SCREW or 5069-RTB18-SPRING. Terminal kits are pre-packed in a pack of 1pcs

Features

• Provide faster safety reaction time
• Function as local I/O in a CompactLogix™ 5380 or CompactLogix 5480 control system or as distributed I/O accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP network for CompactLogix 5380 and ControlLogix® 5580 controllers
• Are available in high-speed counter, digital input, digital output, analog input, analog output, AC input, AC output, isolated and non-isolated relay output, address reserve modules, and field potential distributor
• Use the slim 5069-AENTR for small space requirements
• Provide separate system power for better isolation and built-in power input with field power to I/O modules
• Provide field-side power to field-side devices that are connected to some Compact 5000 I/O modules
• Provide enhanced diagnostics information
• Provide a local safety connectivity to the Compact GuardLogix 5380
• Provide improved status indicators to monitor and troubleshoot systems
• Rated up to SIL3/PLe
• Support 1 Gb embedded switch technology for Linear and Device Level Ring topologies
• Support up to 31 I/O modules
• Provide distributed I/O to the Compact GuardLogix 5380 and GuardLogix 5580, which is accessible via a 5069-AEN2TR or 5069-AENTR over an EtherNet/IP
• Support distributed I/O modules via an EtherNet/IP network for CompactLogix 5380 and ControlLogix 5580 controllers
• Support up to 31 I/O modules per controller or adapter
• Provide high-speed backplane communications for faster transfer rates
