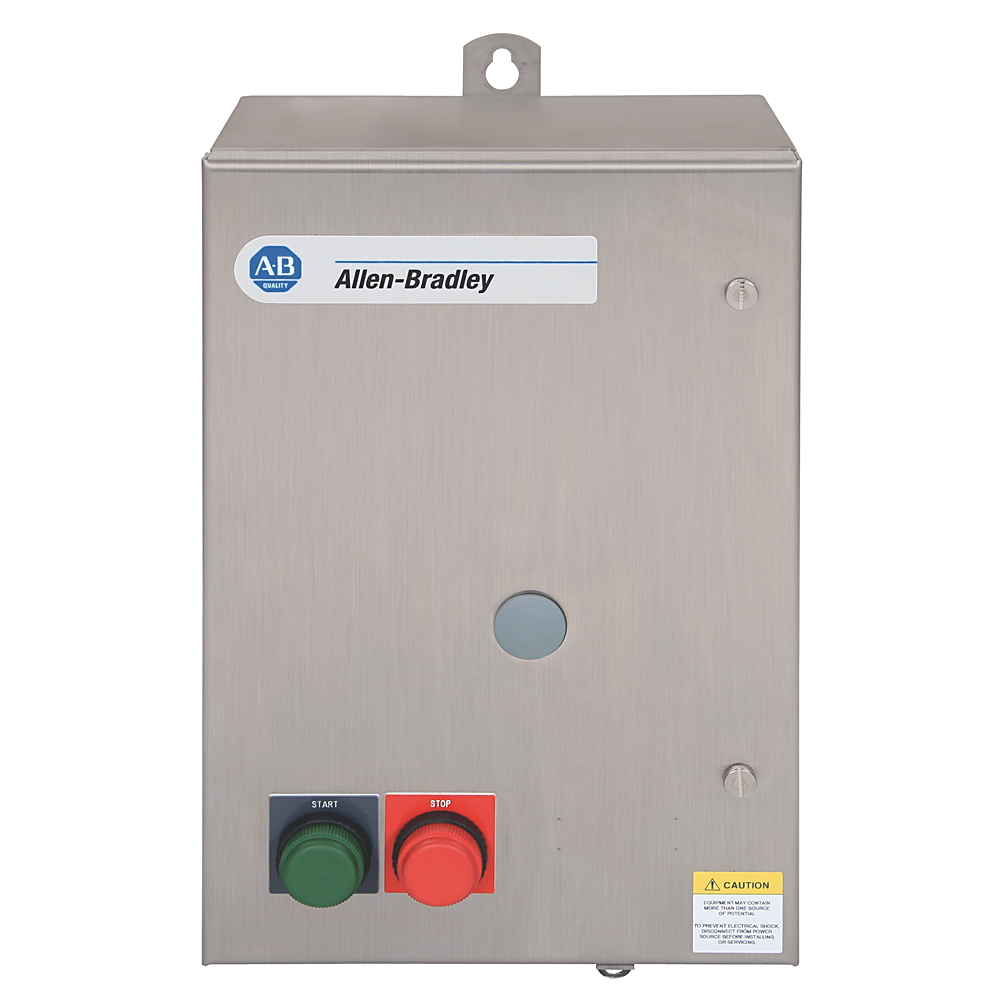

A-B 509-CJA-A2J-1 NEMA Size 2 Non-R
$2,075.00/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Rockwell / Allen Bradley
Mfg Catalog # 509-CJA-A2J-1
North Coast Part # 665307

Specifications

Assembly

  • Hazardous Location: No

Starter Data

  • Supply Voltage: 240V 60Hz
  • Phases: 3 Phase
  • Horsepower: 15 HP
  • NEMA Size: NEMA 2
  • Enclosure Code: Type 3R/4/12 Rainproof, Dusttight Industrial Use
  • Control Voltage: 220/240V 50/60Hz

Options

  • Overload Relay Type: Three Phase Solid State Overload Relay
  • Full Load Amps: 9...45
  • Factory Installed Modifications: START-STOP Push Button

Important Information

  • Enclosure Size [length x width x depth]: 15 x 10 x 6 in.

Categories

Overview

UPC 66246895950
GTiN 00662468959506
Size Size 2
Type Non-Reversing Starter
Horsepower 15 hp
Coil Voltage 230/240 V
Control Voltage 220/240 V
Family Brand Name Allen Bradley
NEMA 2
Number of Phases 3 Phase
Enclosure Type NEMA 3R/12 Painted Metal,NEMA 3R/4/12 Metal No Reset
Amperage 9-45 Amp
Reset Type SMP1,E1+,MRst,Cl20,14-45A
Sub Brand NEMA
Voltage 230-240 Volt
