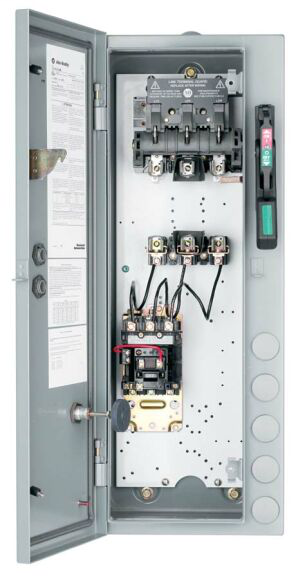

A-B 512-AAB-A2F-24R NEMA Combinatio

Specifications

Assembly

• Factory or User Assembled?: Factory Assembled

• Size: NEMA 0
• Continuous Ampere Rating: 18 A

Motor Data

• Line Voltage: 460V 60Hz

Starter Data

• NEMA Size: NEMA 0
• Enclosure: Type 1 - Enclosure Code "A"
• Control Voltage: 480V 60Hz

Disconnect Data

• Disconnect Type: Fusible
• Fuse Clips: 30A Class R

Options

• Overload Relay: E1 Plus Solid State
• Full Load Amps: 3.2...16

Important Information

• Enclosure Size [length x width x depth]: 27 x 10 x 8 in.

Features

• Includes NEMA sizes 0...6
• Offers snap-together wiring which provides faster and easier wiring of components in the enclosure
• Includes smaller enclosure in select frame sizes
• Field serviceable
• Includes reduced power consumption
• Offers starters in stainless steel and cast enclosures rated for gas and dust hazardous locations
• Includes metal enclosure with ratings of NEMA 1, 3R, 4/12, 4X
• Offers rugged design
• Offers wide-range universal AC/DC electronic coils
• Provides short circuit protection up to 100 kA with fuses and 65kA at 480V with circuit breaker
• Offers IP-20 finger-safe terminals
• Rated for indoor and outdoor applications
